What motherboard sizes does Xhuttle support?

Modified on Sun, Jun 29 at 11:18 PM

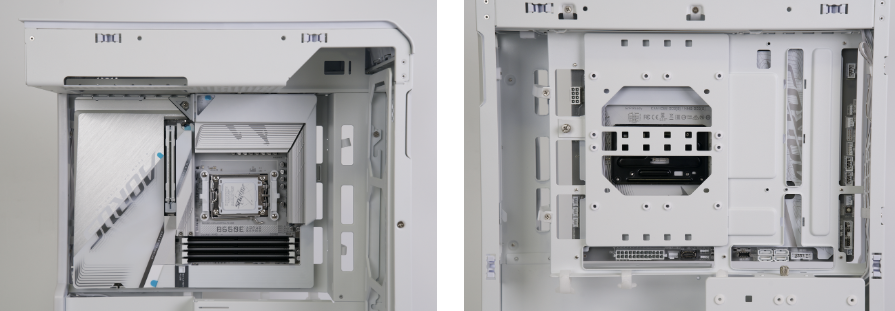

This Xhuttle case supports multiple motherboard sizes, including standard ATX, Micro-ATX, Mini-ITX, and accommodates back-mounted ATX and Micro-ATX motherboards, allowing users to select the most suitable configuration for their needs.


Supported Form Factors

  • Standard ATX (305 × 244 mm)

  • Micro-ATX (244 × 244 mm)

  • Mini-ITX (170 × 170 mm)

  • Back-mount ATX / Micro-ATX (I/O shield mounted flush behind the motherboard)

Note:

  • E-ATX (324 × 272 mm or larger) and non-standard ATX boards (≠ 305 × 244 mm) are not supported.

  • For back-mount boards—especially non-ASUS models—verify compatibility via community builds or reviews to ensure I/O plate alignment and standoff placement.
