Xhuttle Custom Loop Water Cooling Compatibility Guide

Modified on Tue, Aug 26 at 6:14 PM

Xhuttle Spaceship Chassis Liquid Cooling Size Note:

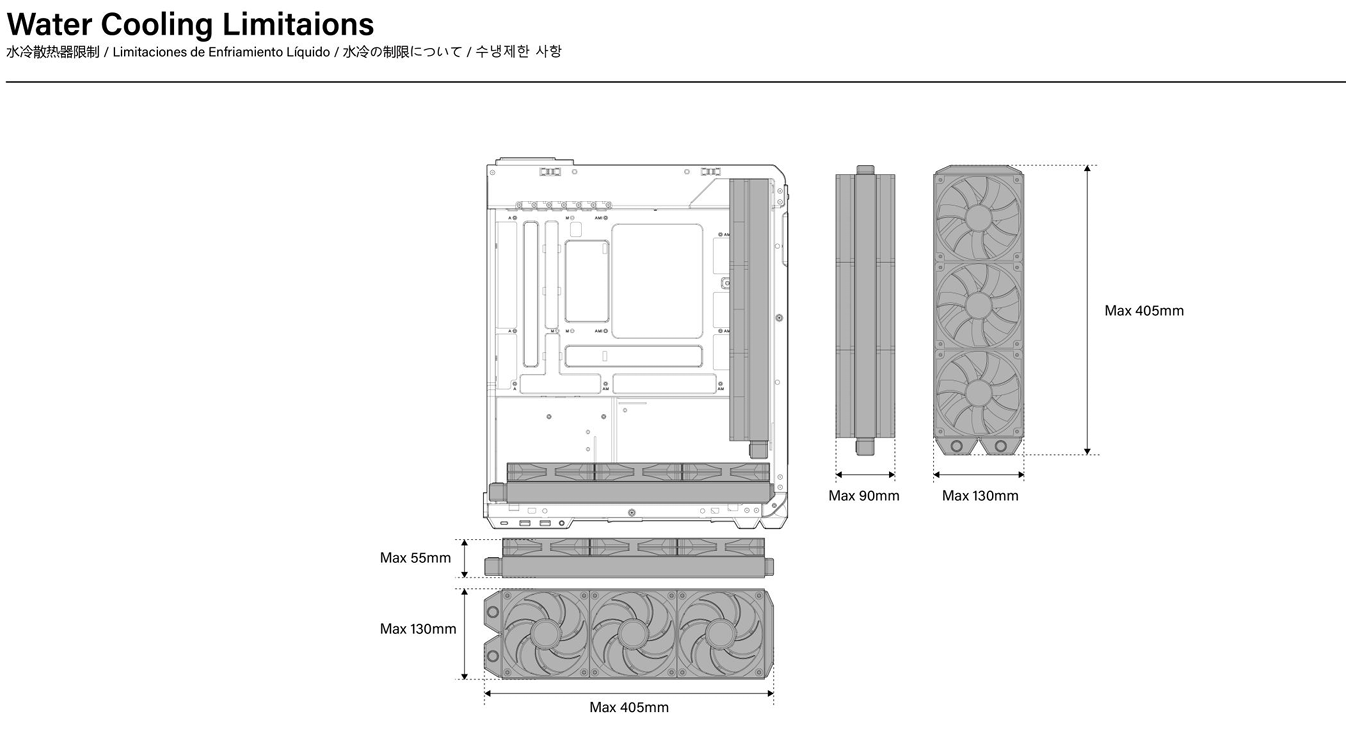

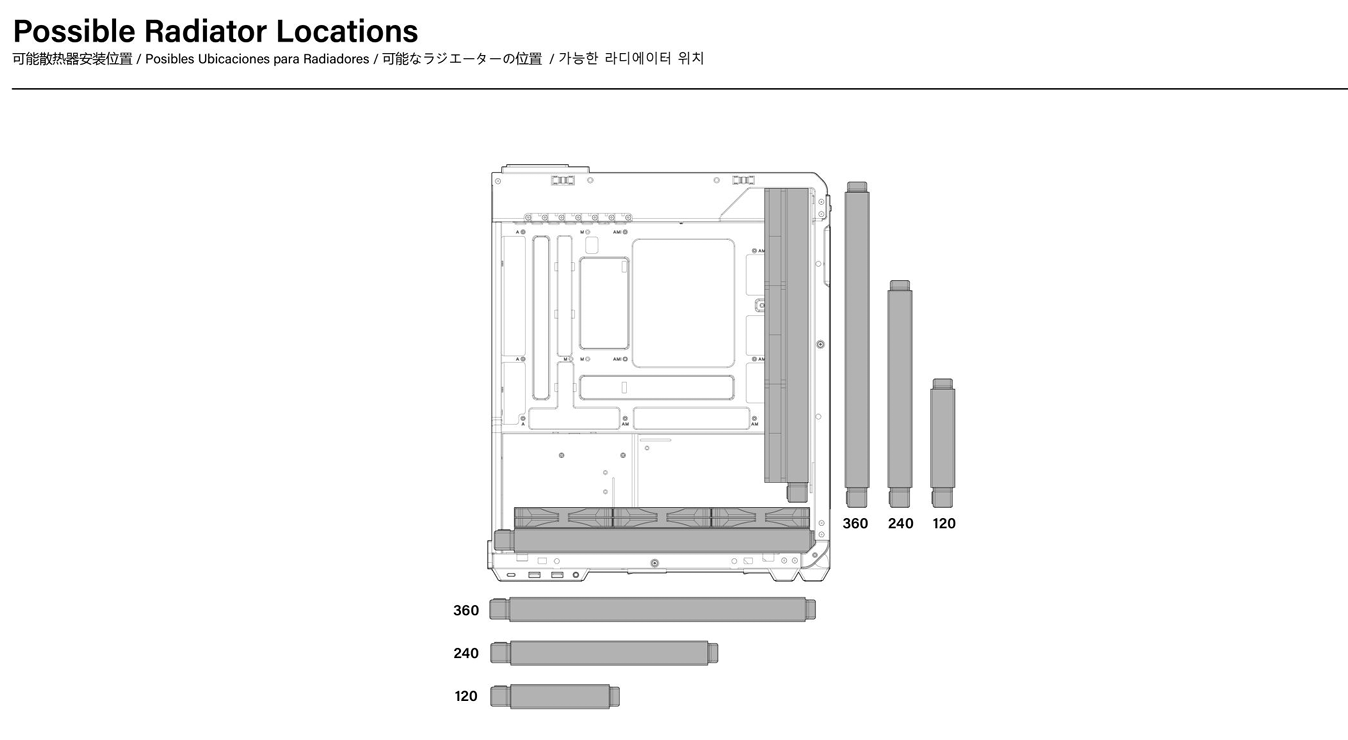

Both the side and bottom can accommodate a 360mm radiator. Please note that due to width limitations, only radiators compatible with 120mm fans are supported.

Radiator + side tube width limit: 130mm (If the radiator has side tubing ports, exceeding 130mm will prevent installation).

Due to space constraints, the maximum thickness for a bottom radiator combined with fans is 55mm, and the maximum length is 405mm.
The side-mounted radiator supports additional fan group configuration. However, due to weight and space constraints, it is not recommended to use fans thicker than 30mm. The maximum combined thickness of the radiator and fans should not exceed 90mm, and the length should not exceed 405mm.

Xhuttle Chassis Compatibility Limitations When Using Dual Radiators:

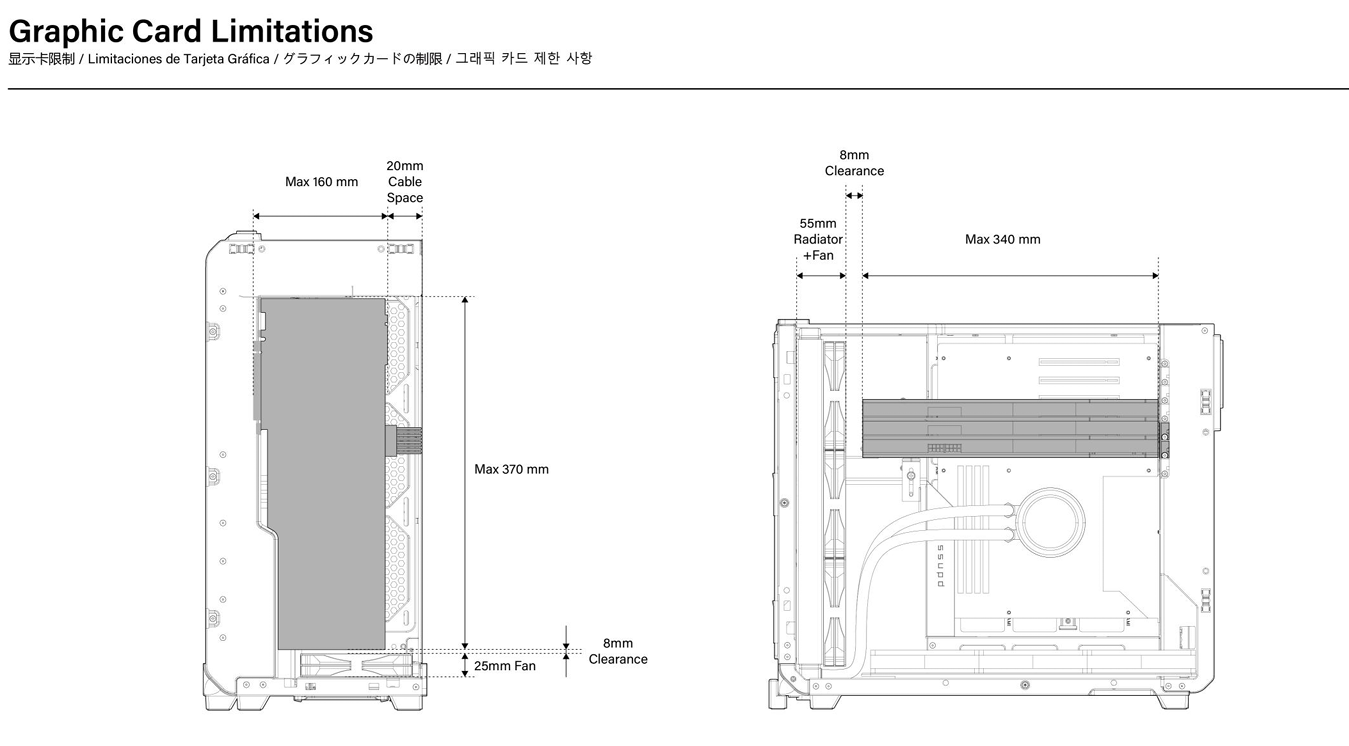

When using a bottom radiator, the maximum combined thickness of the radiator and fans is 55mm. To avoid airflow interference, graphics cards up to 340mm in length are supported.
When dual radiators are installed, the side radiator is positioned at a higher level, which occupies one fan mount at the top. The top can support a maximum of two 120mm fans.

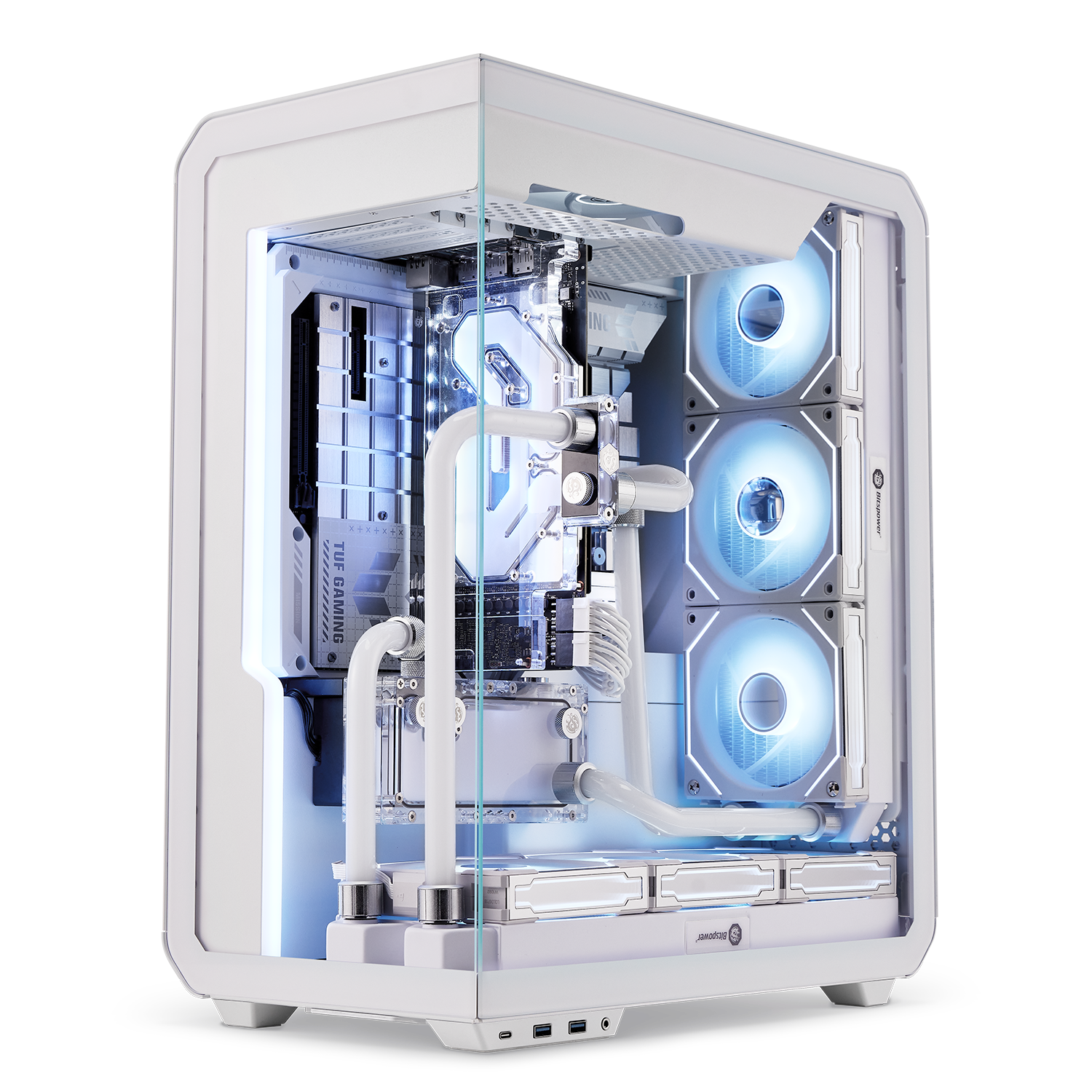

Xhuttle Chassis Official Website Diagram for Dual Liquid Cooling Configuration Reference：

Due to the exceptional thermal dissipation capacity of the dual-radiator liquid cooling system, this configuration is capable of handling flagship components including the Intel Core i9-14900K, AMD Ryzen-9 9950X, and future models like the anticipated Ryzen-9 9950X3D.

It is fully compatible with flagship custom water-cooled graphics cards, making it ideal for building a top-tier flagship water-cooled gaming system.

Core Components:

MB: ASUS TUF GAMING Z790-BTF WIFI (Back-Connect)

CPU: Intel Core i9-13900K

GPU: ASUS TUF GAMING RTX 3080 O10G V2

RAM: Klevv DDR5 RGB White (4 sticks)

Case: SSUPD Xhuttle

Cooling & Fittings (Bitspower Series):

Radiators: 2x Bitspower Tarasque II 360S (White)

Reservoir: Bitspower CR802

CPU Block: Bitspower Summit M Pro - Crystal (LGA1700)

GPU Block: Bitspower Classic VGA Block for ASUS TUF RTX 3090

Fittings:

6x Bitspower Silver Shining Advanced Rotary 90° Adapters (G1/4", OD 16mm)

12x Bitspower Artemis Multi-Link Fittings (OD 16mm, Sandblast Silver)

8x Bitspower G1/4" Extenders (15mm, Glorious Silver)

Fans:

3x LIAN LI UNI FAN SL120 V2 (White, standard)

3x LIAN LI UNI FAN SL120 V2 Reverse Blade (White)

2x Standard White Fans
