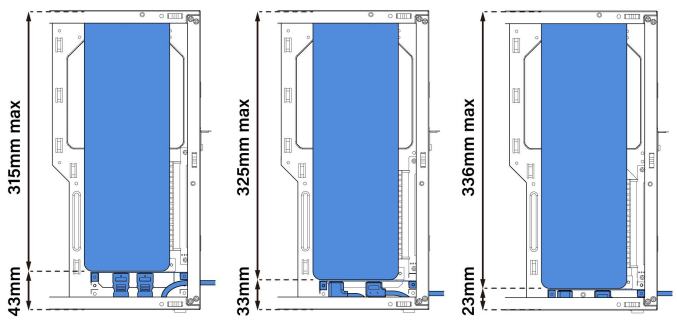

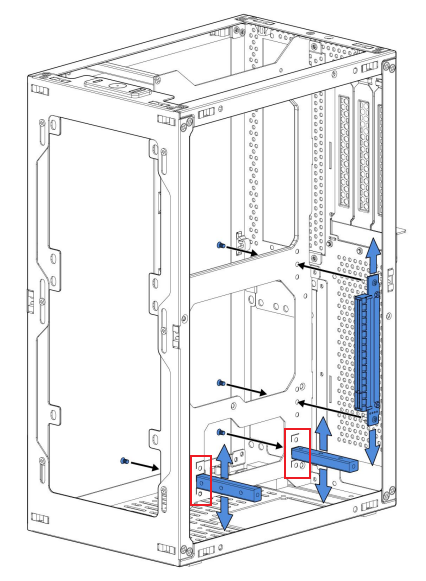

You can adjust the GPU mounting strut by selecting one of the three preset clip positions located at the bottom of the motherboard tray. This allows you to accommodate graphics cards of different lengths:
- When installed in the top clip, it supports GPUs up to 315mm.
- When installed in the middle clip, it supports GPUs up to 325mm.
- When installed in the bottom clip, it supports GPUs up to 336mm.
Please choose the appropriate clip position based on your GPU length. We recommend checking your GPU’s exact dimensions and power connector placement before installation to ensure compatibility.

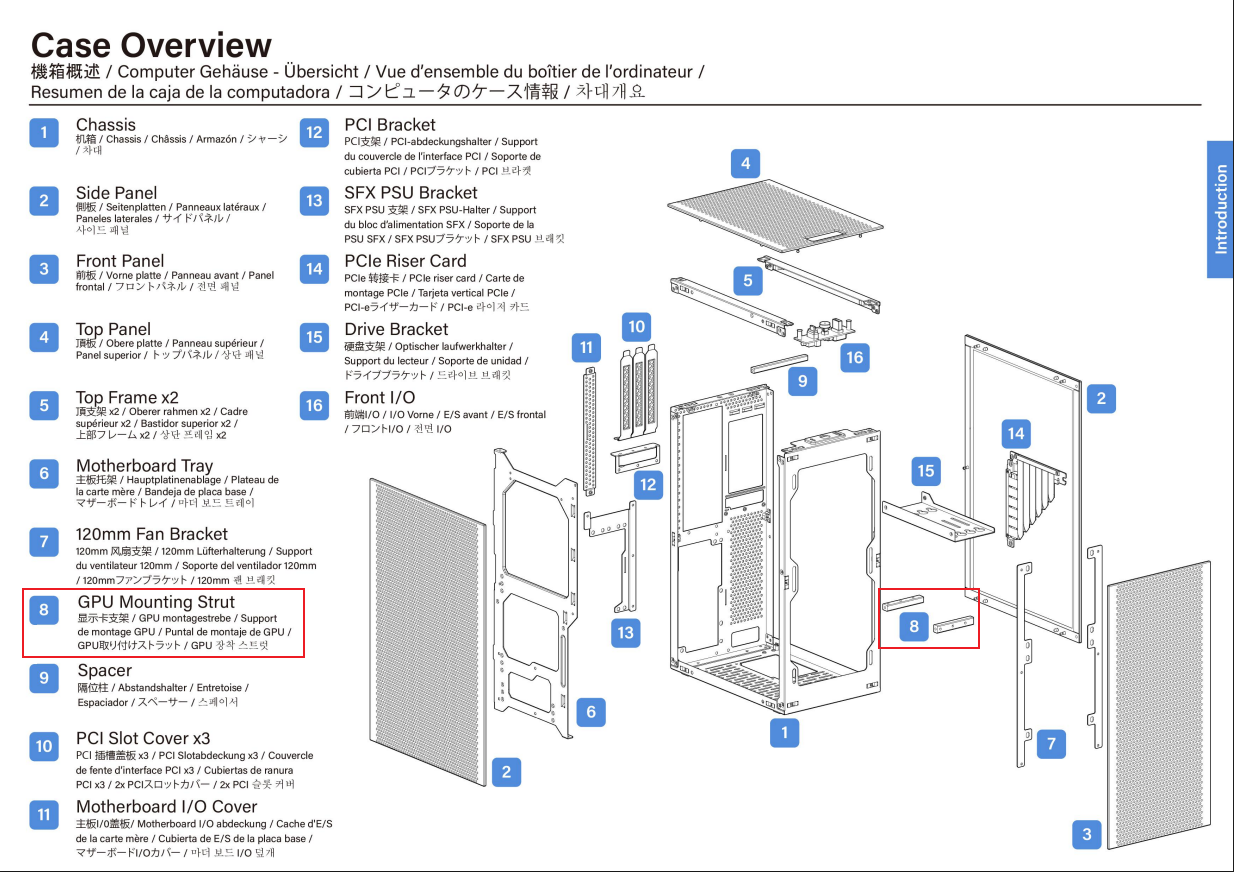

PS. GPU mounting strut
