Why Is My Case Power Button LED Blinking?

Modified on Fri, Aug 1 at 8:13 PM

Overview
The blinking light on your case's power button is not a malfunction — it’s a functional feature designed to indicate your drive’s activity in real-time. Let’s explore what it means, how it works, and when to troubleshoot.



Core Function: What the Blinking LED Really Tells You

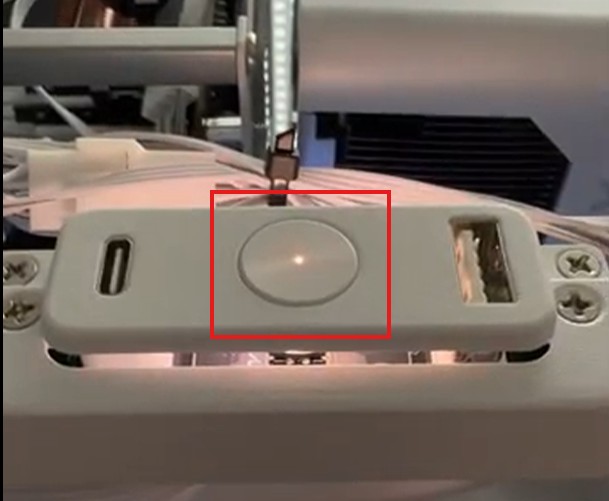

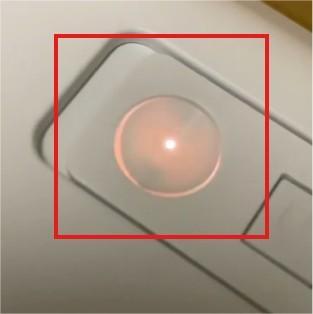

The HDD LED on your case — often integrated into or near the power button — is a critical visual indicator designed to reflect real-time storage activity.

1. LED Blinking = Storage Activity in Action

The core function of the HDD LED is to blink whenever your drive performs a read or write operation. This gives you an instant visual cue that your system is actively processing data.

  • Frequent blinking: Indicates continuous or heavy disk usage (e.g., loading applications, OS boot).
  • Intermittent blinking: Normal background tasks or periodic access.
  • No blinking: Either the system is idle or the drive is disconnected/inactive.
  • Always-on LED (no access): Could suggest a hung system or HDD malfunction.


2. Not Just Aesthetic – It’s Diagnostic The LED provides a non-intrusive way to diagnose potential issues:
  • If you experience freezes and the LED remains on, it may point to I/O bottlenecks.
  • In multi-drive setups, observing individual drive LEDs helps isolate slow or failing drives.


Technical Insight: How It Works

  • LED Colors: Traditionally red, now often white or RGB
  • Motherboard Header: Connects via front power pins labeled “HDD LED +/-”
  • Voltage: Typically 5V, drawing 10–20mA

Trigger Mechanism:

  • Drive sends read/write command
  • SATA controller detects activity
  • Current is sent to the LED circuit, causing a flash

Troubleshooting Guide

A blinking LED on or near your power button is typically the HDD activity LED, not an issue with the power supply or switch.


SymptomPossible CauseSuggested Solution
LED stays constantly onSystem freeze or HDD error (e.g., bad sectors)Force restart the system; use tools like HD Tune to scan and repair bad sectors
LED does not light at allMiswired cable / damaged LED / BIOS configCheck HDD LED polarity; verify connection on motherboard; check BIOS setting
Tip: Some motherboards disable front panel LEDs by default or in low-power modes — consult your BIOS settings if necessary.

Need Support?

If you’re experiencing an issue with the physical power button itself — such as failure to respond, inconsistent clicks, or stuck actuation — this is separate from the normal HDD LED behavior.

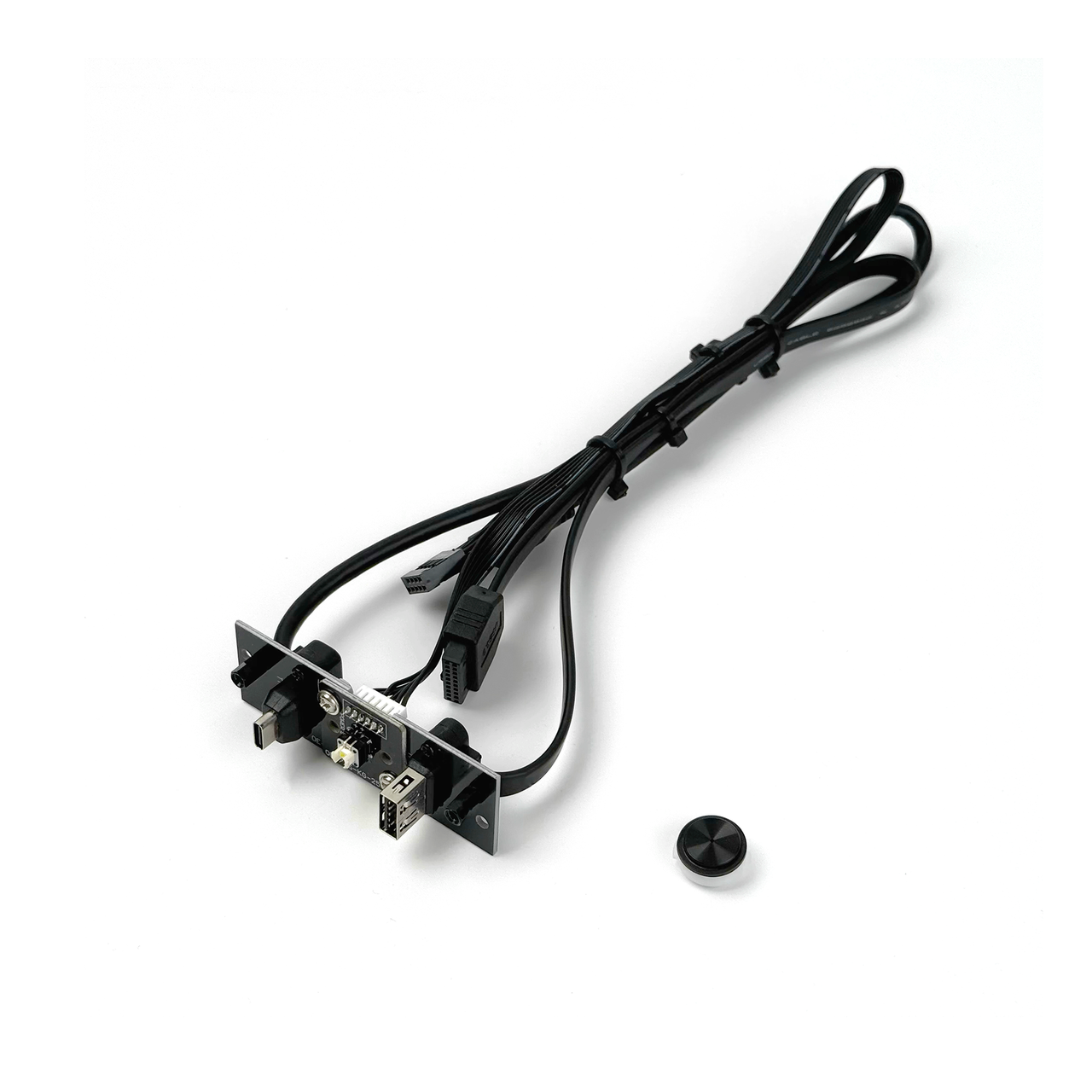

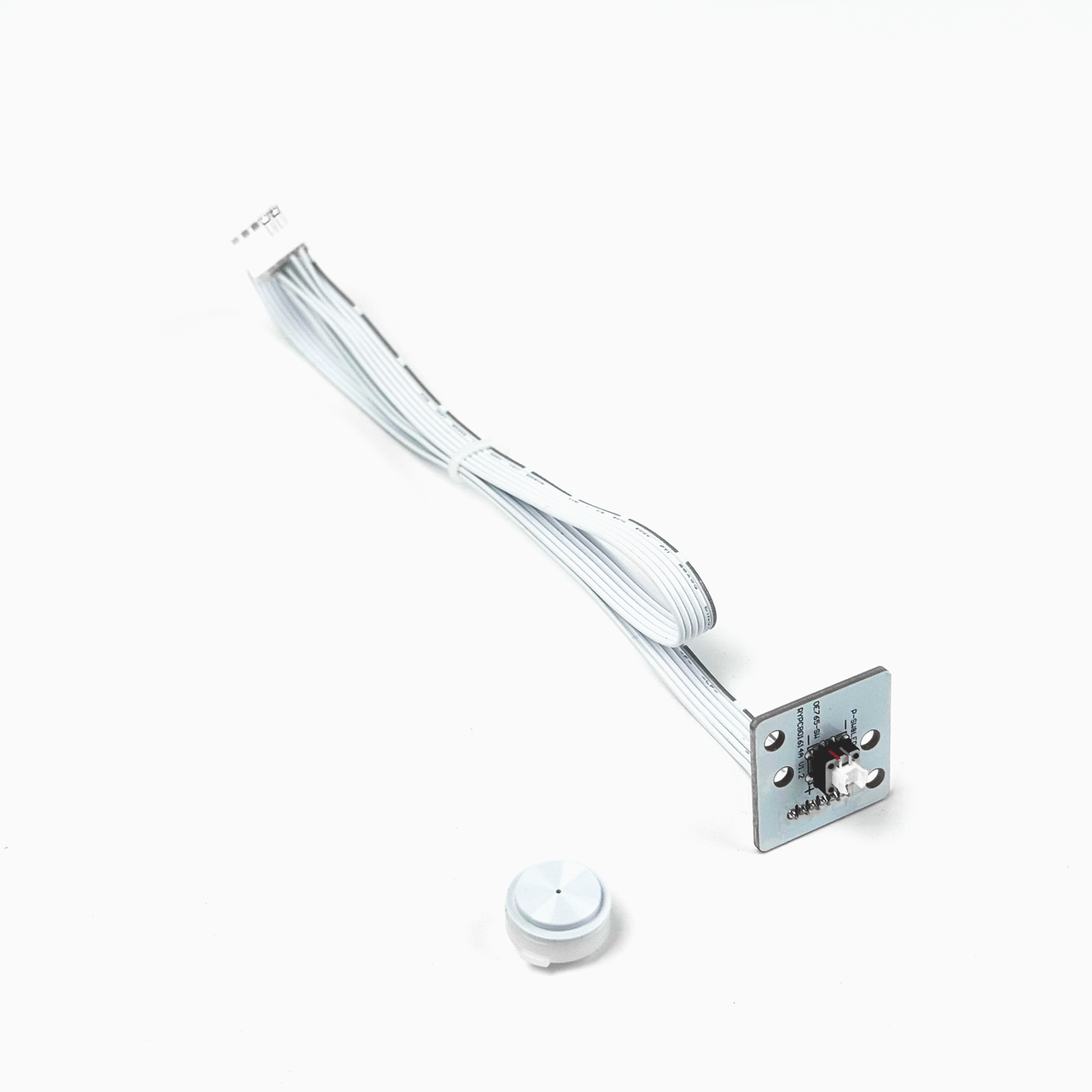

We offer replacement power button modules for different case models.
Submit a support ticket here: Submit RMA Ticket
  • Xhuttle and Meshroom series have different button specifications.
  • To ensure compatibility, please refer to the image below and identify your case model before submitting a support request.
