Understanding Vertical GPU Cooling: Vapor Chambers, Heat Pipes, and Airflow Design

Modified on Fri, Sep 5 at 2:30 PM

Vapor Chambers


For consistent cooling performance in vertically mounted GPU configurations, vapor chambers play a critical role.

Vapor Chamber?

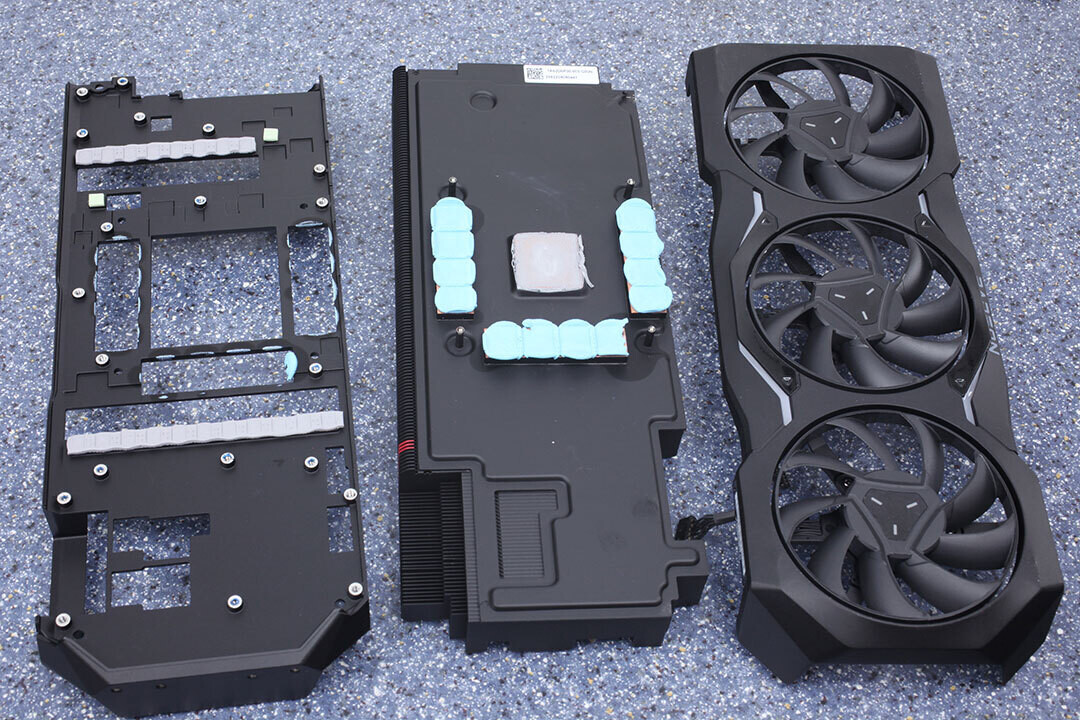

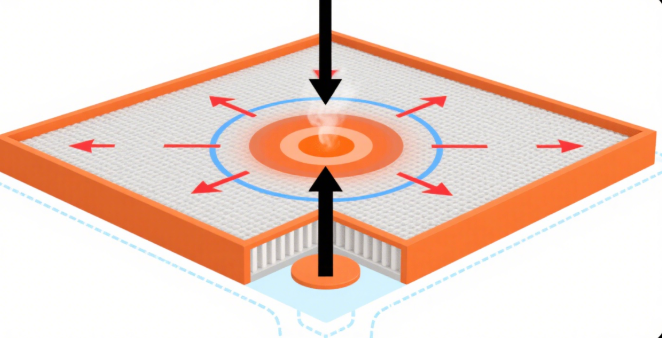

A vapor chamber is a flat, planar heat transfer component that directly covers the GPU core—often extending to RAM and power delivery components. While its operating principle shares similarities with heat pipes, its internal structure differs significantly.



Advantages for Vertical Mounting

  • Enhanced Heat Spreading: The large surface area enables rapid and uniform distribution of concentrated heat from the GPU core, minimizing localized hotspots.

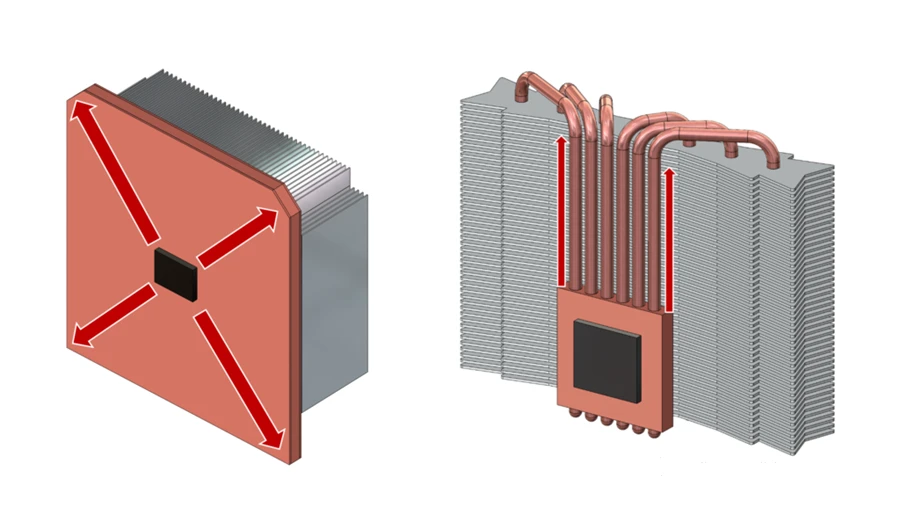

  • Orientation Insensitivity: A key benefit lies in its 3D capillary network, as opposed to the primarily 1D axial structure of heat pipes. This allows working fluid to circulate back to the evaporator from multiple directions, resulting in minimal performance impact from gravitational orientation—whether mounted upright, inverted, or horizontally.
  • Comprehensive Heat Coverage: Beyond the GPU core, vapor chambers typically cool adjacent RAM and MOSFETs, promoting balanced thermal management across critical GPU components.


Performance Correlation with Size

Larger vapor chambers offer improved thermal performance:

  • Increased capacity to spread heat, reducing the risk of localized overheating.
  • Greater compatibility with additional heat pipes (or function as a primary cooling element) to accelerate heat transfer to fin arrays.
  • More consistent resistance to gravitational effects in vertical mounting setups.

Summary : A large-scale vapor chamber is fundamental to maintaining vertical GPU cooling performance comparable to horizontal mounting. When selecting a GPU for vertical installation, priority should be given to models equipped with vapor chambers—with particular attention to size. This factor is more influential than anti-gravity heat pipes alone, as evidenced by the large vapor chambers used in AMD and NVIDIA reference GPU designs.


Anti-Gravity Heat Pipes


Basic Heat Pipe Functionality

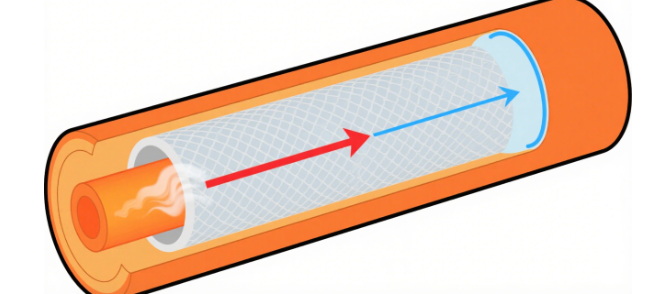

A heat pipe is a high-efficiency thermal conductor containing a working fluid. At the heat source (GPU contact interface), the fluid evaporates, travels as vapor to the cooler fin section (condenser), releases heat, and returns to the heat source via capillary structures lining the pipe interior. Capillary force is essential for this circulation cycle.


Gravitational Impact on Performance

In standard horizontal GPU mounting (fans downward), gravity assists in returning condensed fluid to the heat source. Conversely, vertical mounting (I/O upward, heat source above the condenser) creates gravitational resistance to fluid return. Inadequate capillary strength can disrupt circulation, reducing heat pipe efficiency and elevating GPU temperatures.


Design of Anti-Gravity Heat Pipes

Anti-gravity heat pipes represent a manufacturer-optimized solution, featuring enhanced internal capillary structures to improve fluid circulation against gravitational forces—outperforming standard heat pipes in vertical configurations.

Inherent Limitations

  • Not Gravity-Immune: While marketed as "anti-gravity," these components do not overcome physical constraints. They enhance anti-gravitational performance and mitigate adverse effects but cannot eliminate gravitational influence entirely.


Traditional U-Shaped Heat Pipes

GPUs utilizing standard U-shaped heat pipes (without anti-gravity design or vapor chambers) may exhibit less severe performance degradation in vertical mounting than commonly assumed.

Heat Dissipation Dependence on Fins

Heat pipes function solely as heat transporters; actual heat dissipation into the ambient environment is accomplished by fin arrays.


Significance of Interconnected Fin Design

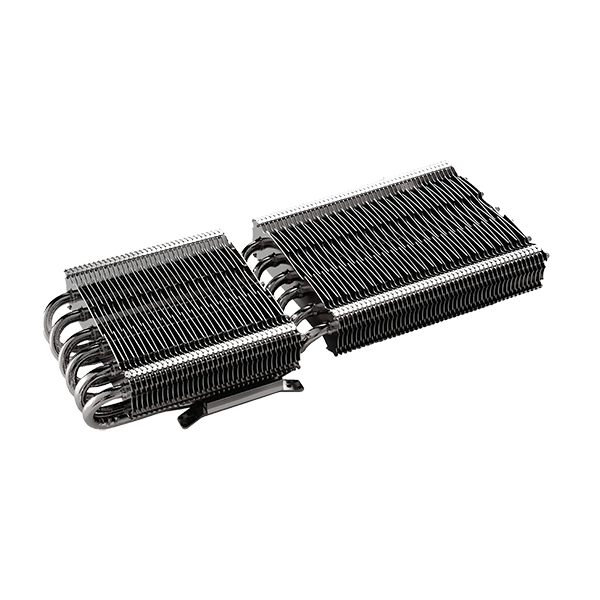

Unlike straight heat pipe configurations with segmented fins, U-shaped heat pipe GPUs integrate fins via welding or fin-stabbing onto multiple heat pipes, forming a continuous, unified cooling assembly.

This design provides two core benefits:

  • Heat Distribution: If gravity impairs efficiency in one heat pipe, the integrated fin array rapidly distributes heat across the entire assembly, with other functional heat pipes and fins compensating for localized losses.
  • System-Level Redundancy: The cooling module operates as a cohesive unit. Inefficiencies in individual heat pipes are offset by the large fin surface area and remaining operational heat pipes.


Summary: For well-cooled GPUs with traditional U-shaped heat pipes, vertical mounting results in negligible temperature increases. The interconnected fin array effectively compensates for minor heat pipe inefficiencies caused by gravity.
