The upper and lower latch mechanisms differ on this chassis. To prevent damage, please follow these steps carefully.

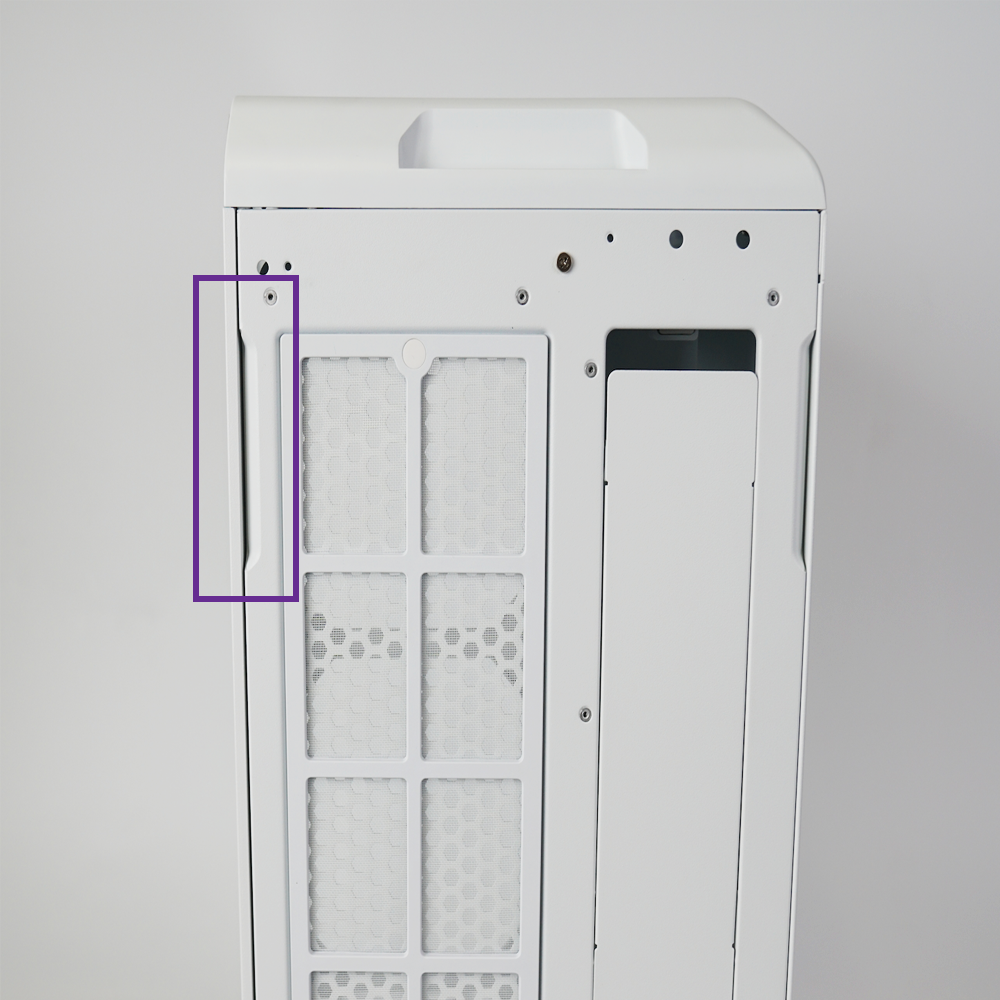

| On the right side of the front panel, in the upper half, you will find a single inward-facing notch. This is your starting point. |  |
2. Remove the Front Tempered-Glass Panel | ||

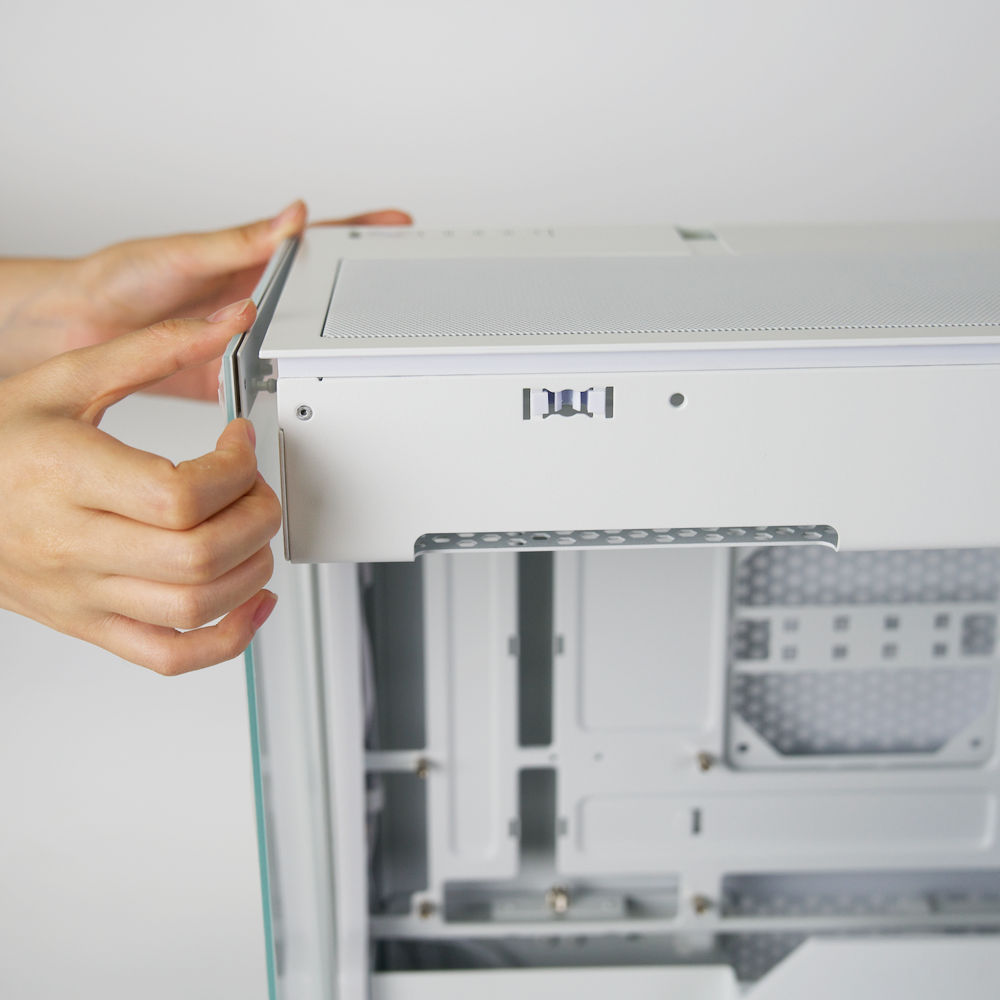

Insert your finger into the notch; Use your left hand to gently support and guide the left edge of the glass. With your right hand, grasp the top edge of the glass near the right-side notch and pull outward until the upper latch releases. |  | |

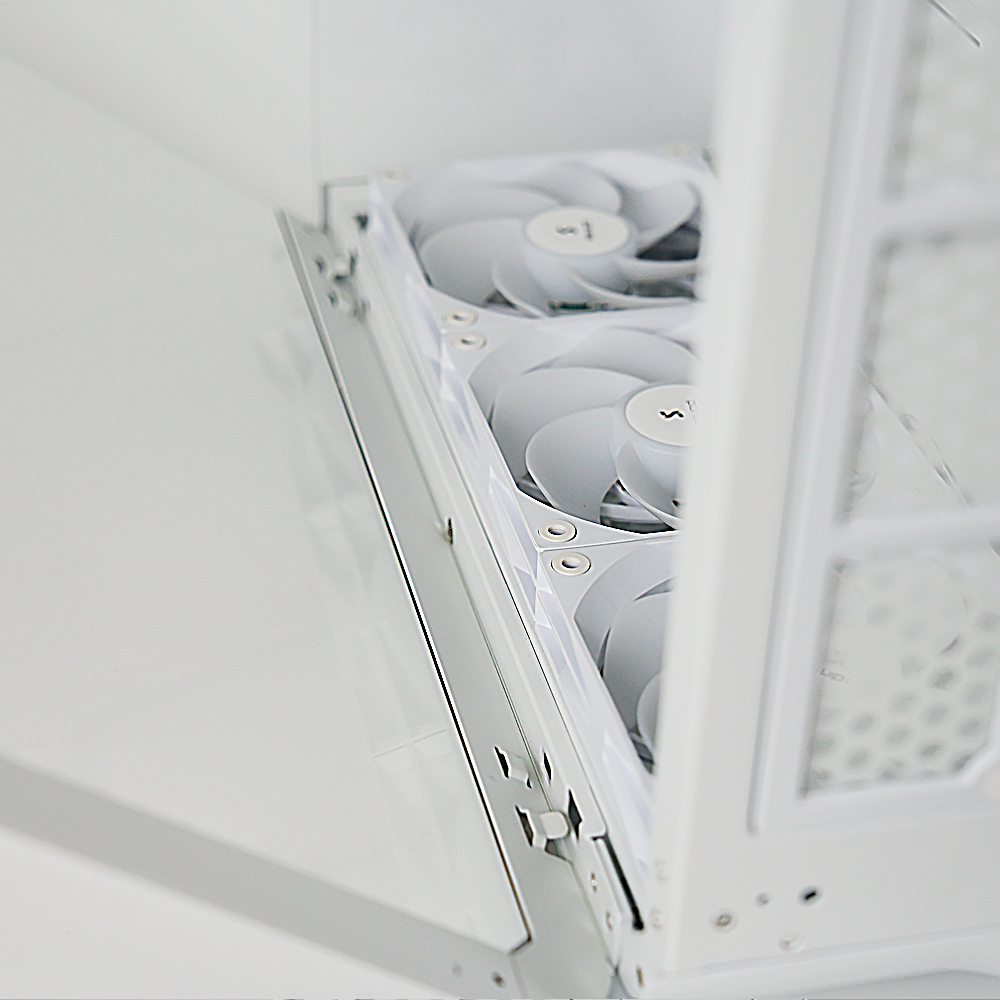

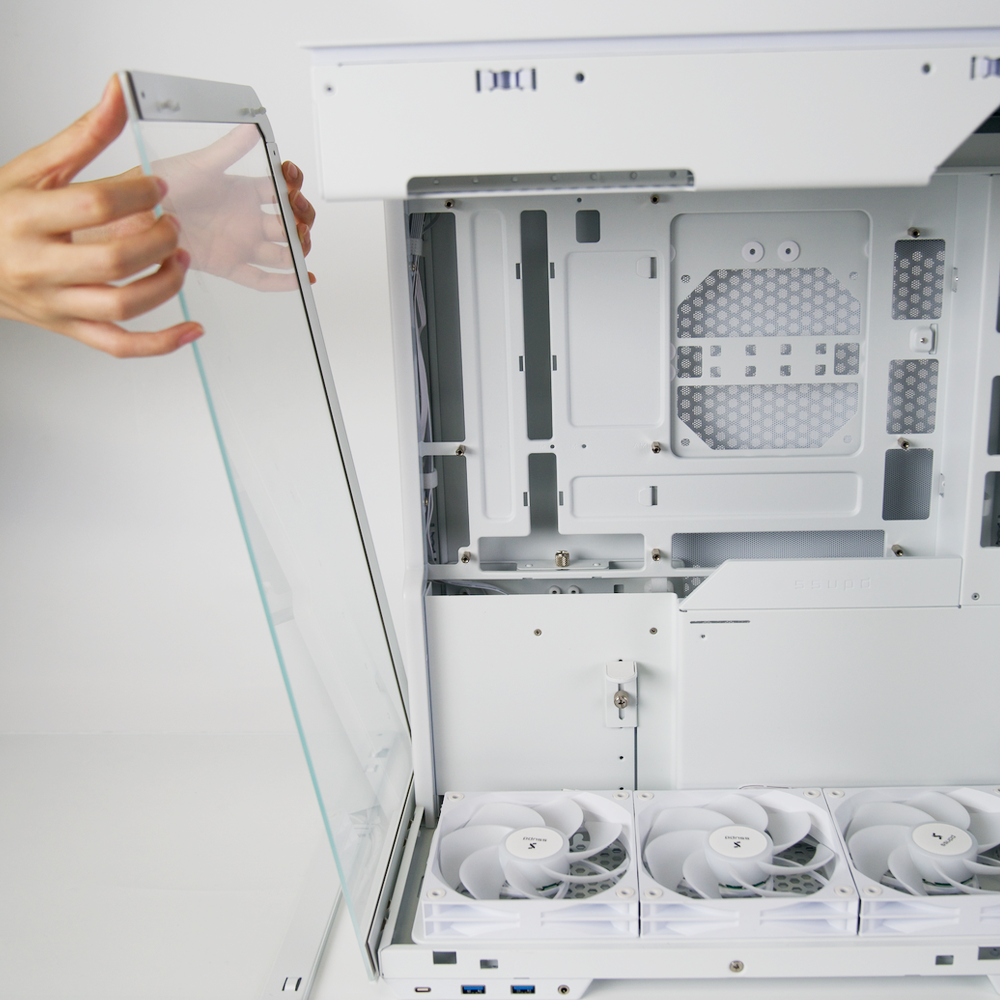

Once the top is free, lift the panel outward and upward to disengage the bottom metal catches, then remove it vertically. |  | |
3. Remove the Side Tempered-Glass Panel | ||
After removing the front panel, move to the side panel |  | |

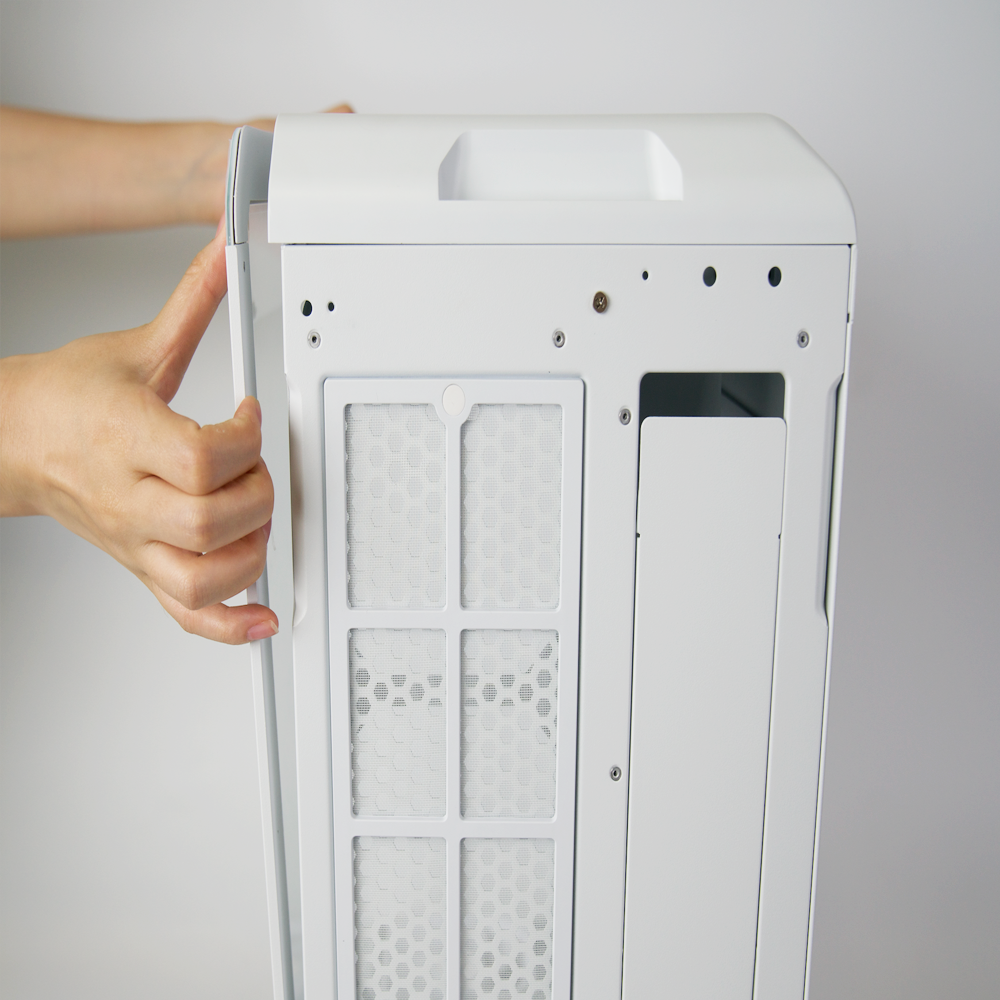

Place both hands at the top edge of the side glass and pull outward symmetrically to release the top latches. |  | |

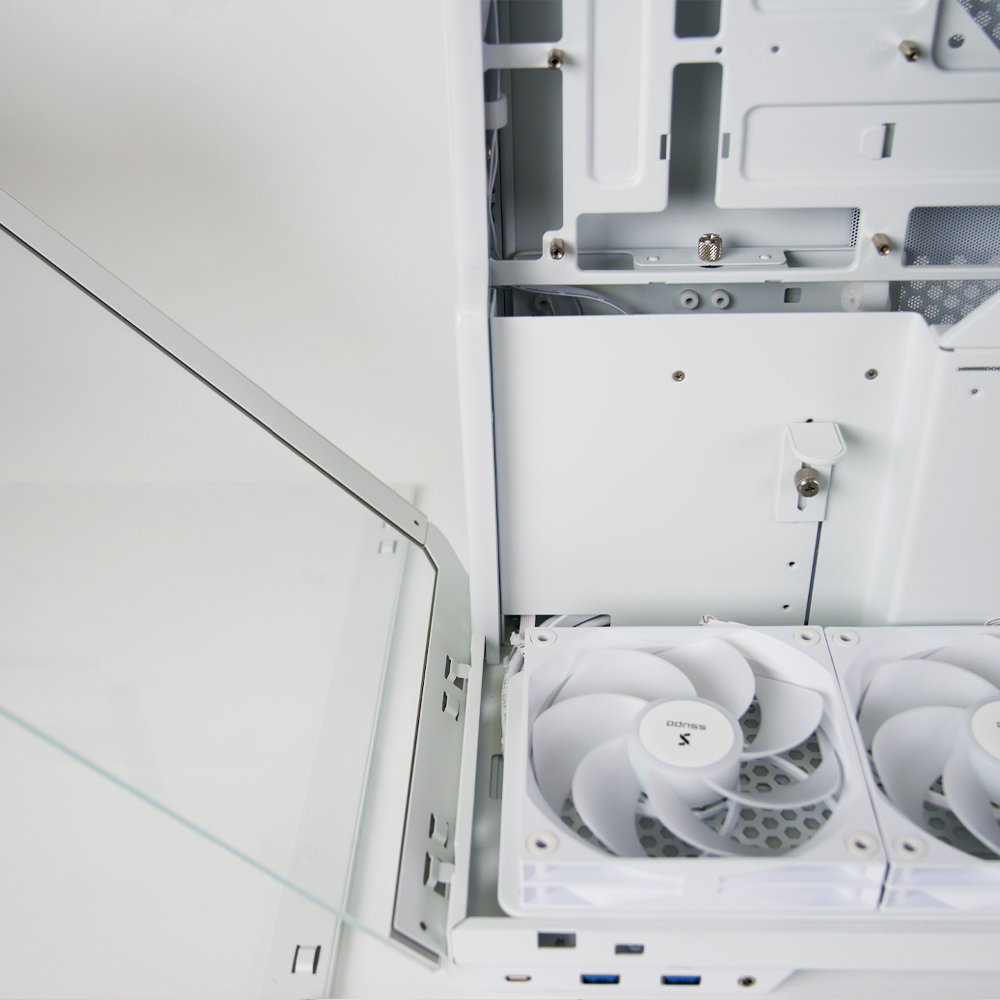

When the latches are free, pull the side panel outward and upward to detach it. |  | |
Tip: For a visual walkthrough, watch our KOL videos. | ||
Video 1 (starts at 4:01) | https://www.youtube.com/watch?v=XuiQ3RHairo | |
Video 2 (starts at 0:50) | https://www.youtube.com/watch?v=GxJ3AmN_2c4 | |
