SSUPD Xhuttle Case — AIO Liquid Cooler Compatibility Limitation

Modified on Tue, Nov 11 at 12:33 PM

Compatibility Overview

Current Status: The Xhuttle chassis does not currently support the Lian Li Hydroshift II or ASUS ROG Ryujin IV SLC 360 liquid coolers.

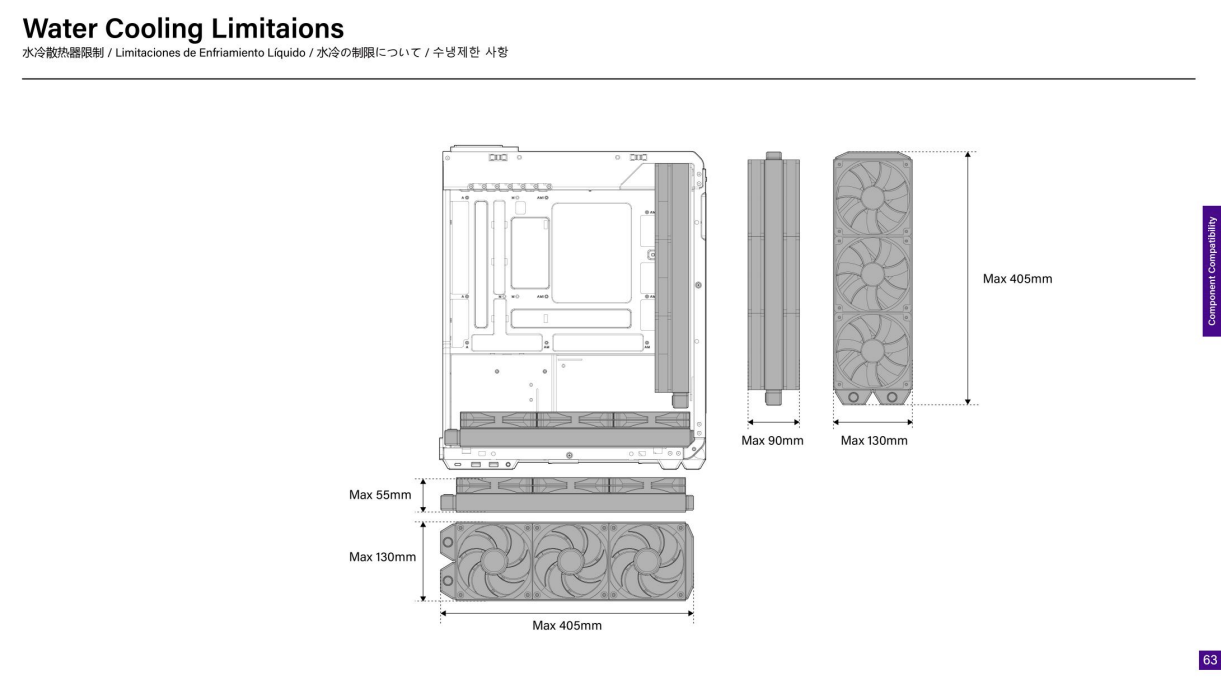

Reason: Both coolers feature raised tubing and radiator thickness that exceed the chassis’ maximum allowable radiator width of 130 mm, preventing a flush fit on either the side panel or the bottom.

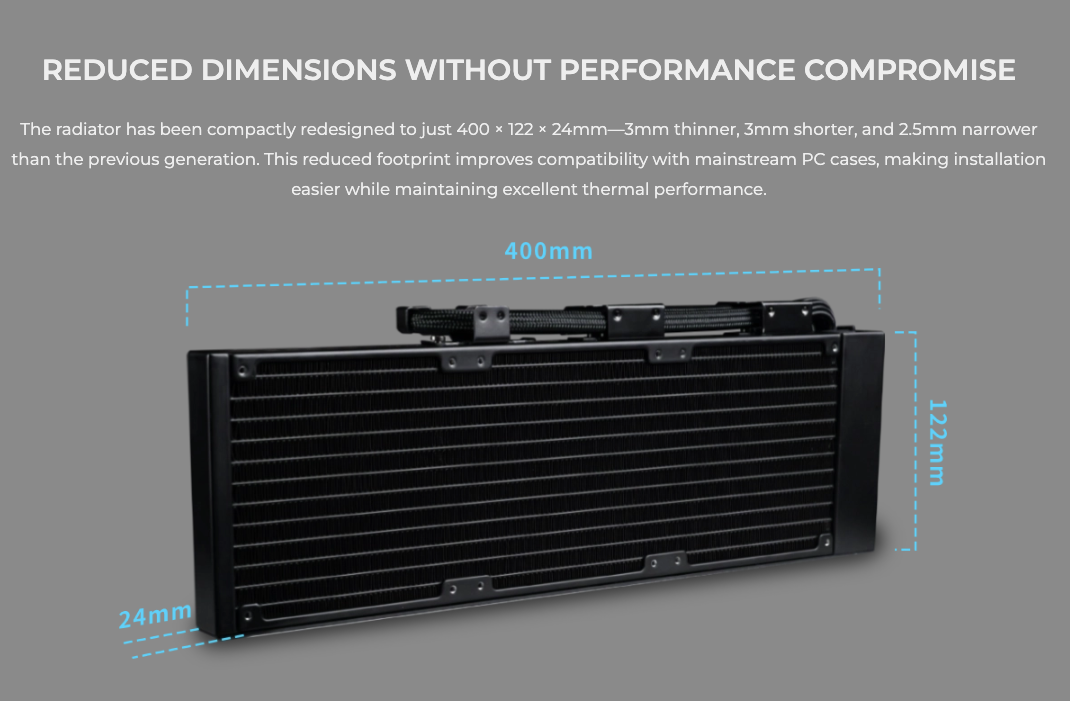

Lian Li Hydroshift II Radiator Dimension: 400 x 122 (+ additional over 15mm of tube) x 24 mm

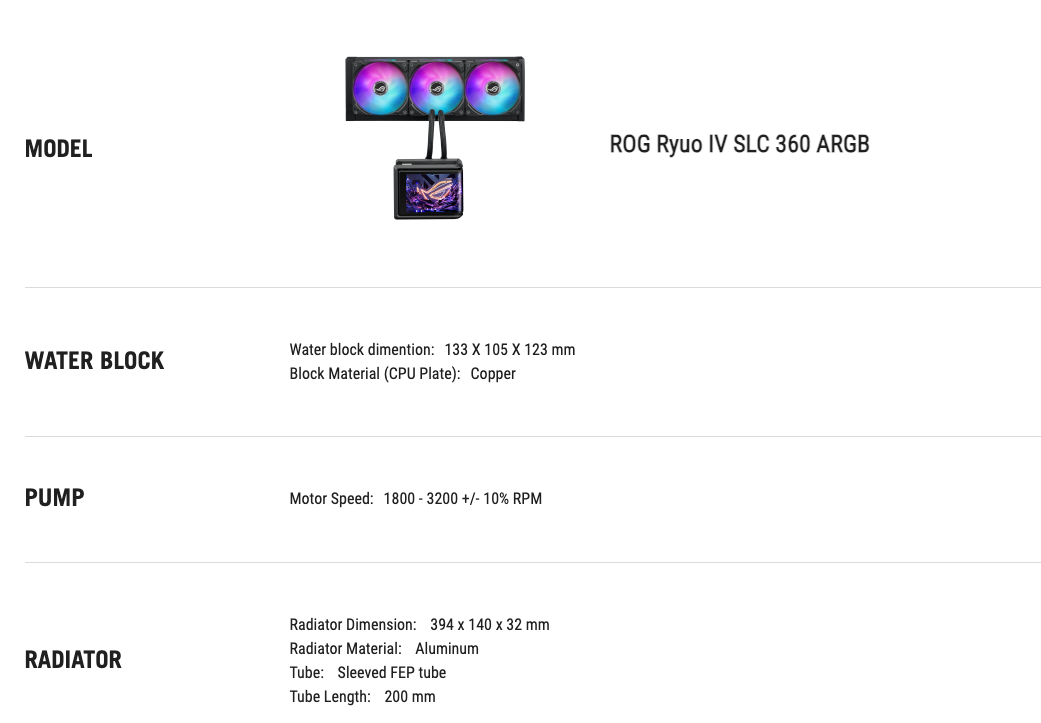

ASUS ROG Ryujin IV Radiator Dimension: 394 x 140 x 32 mm

To clarify the situation:

The radiator width (≈122 mm) by itself is not the issue — that dimension is within the supported tolerance.

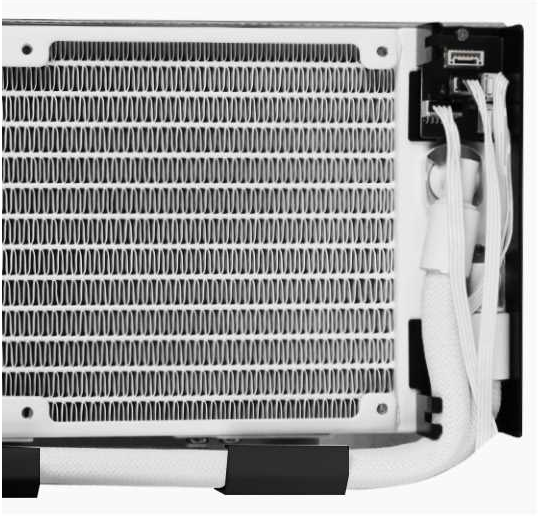

However, both Hydroshift I and II share a fixed tube-bend design at the pump outlet (as shown in the reference image). Because the tubes must route sideways rather than straight out, the combined radiator + tube width exceeds 130 mm.

This additional width prevents proper alignment with the mounting bracket and, in some setups, may also cause interference with the tempered-glass side panel when closed.

Our engineering team is actively evaluating internal structural enhancements. Upcoming revisions aim to enable compatibility with Lian Li Hydroshift II.
