Question

Can the Meshroom D case accommodate an NVIDIA RTX 5090 GPU, a Micro-ATX (mATX) motherboard, and an AIO liquid cooler? What's the size limitation for each part?

Compatibility Overview

Yes, the Meshroom D supports this configuration with specific requirements like using Extender Bracket.

• AIO Liquid Cooler Compatibility
  • Maximum AIO Radiator Size: 280mm.
  • The AIO radiator can be mounted on the side and Bottom, depending on motherboard layout and GPU length.

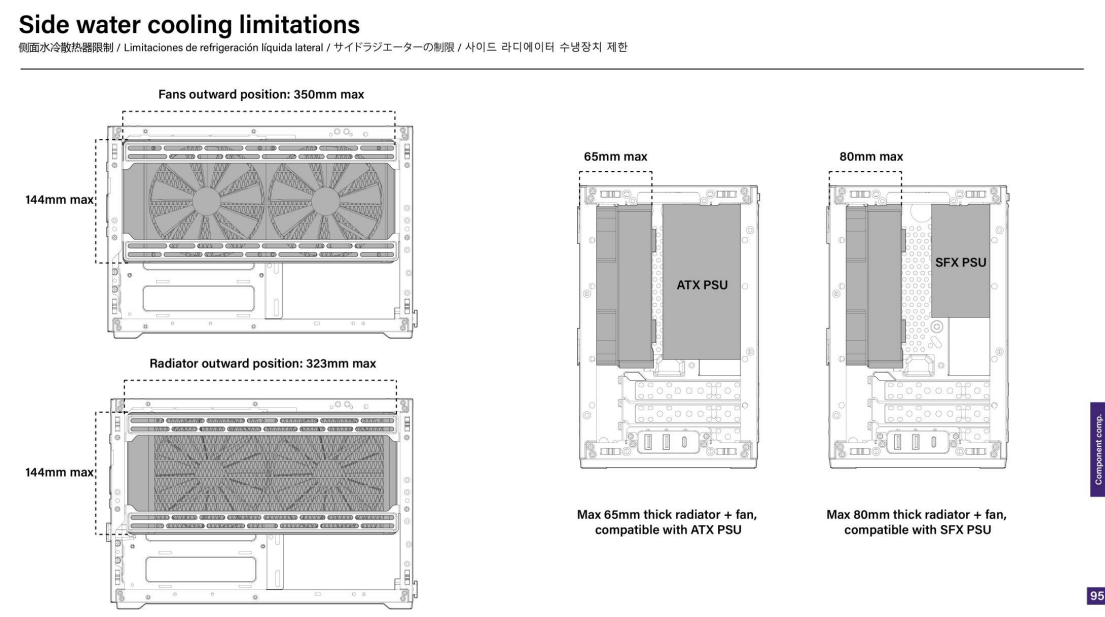

Meshroom D User Guide - Compatibility Section - Page 95

• GPU Compatibility

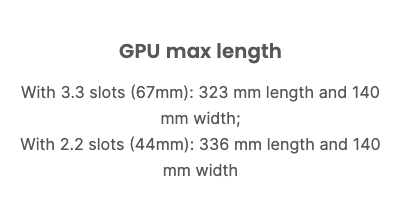

  • 5090 (reference design) is supported, but GPU length limits vary based on motherboard and AIO configuration.

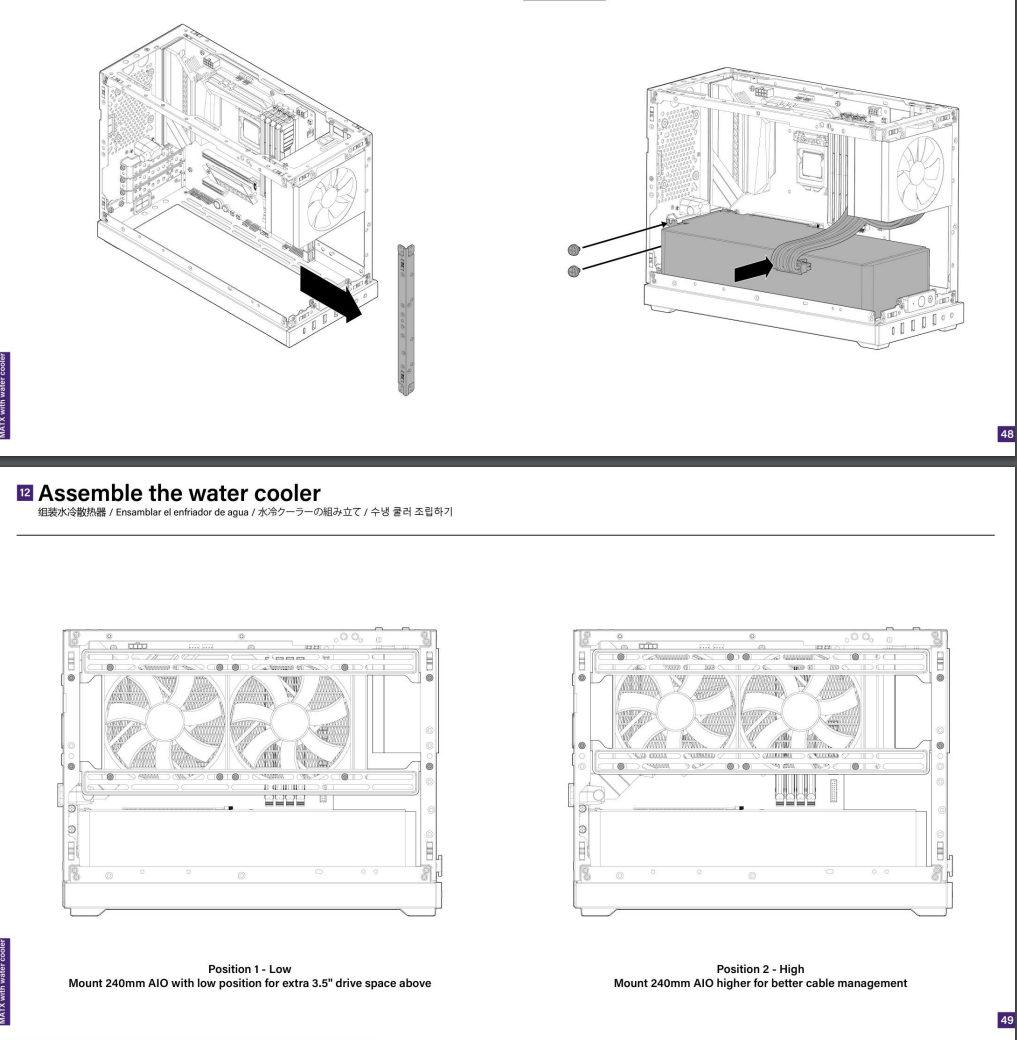

• Critical Reference: See the Meshroom D User Guide for detailed GPU length restrictions when paired with an AIO (Page 42-51)

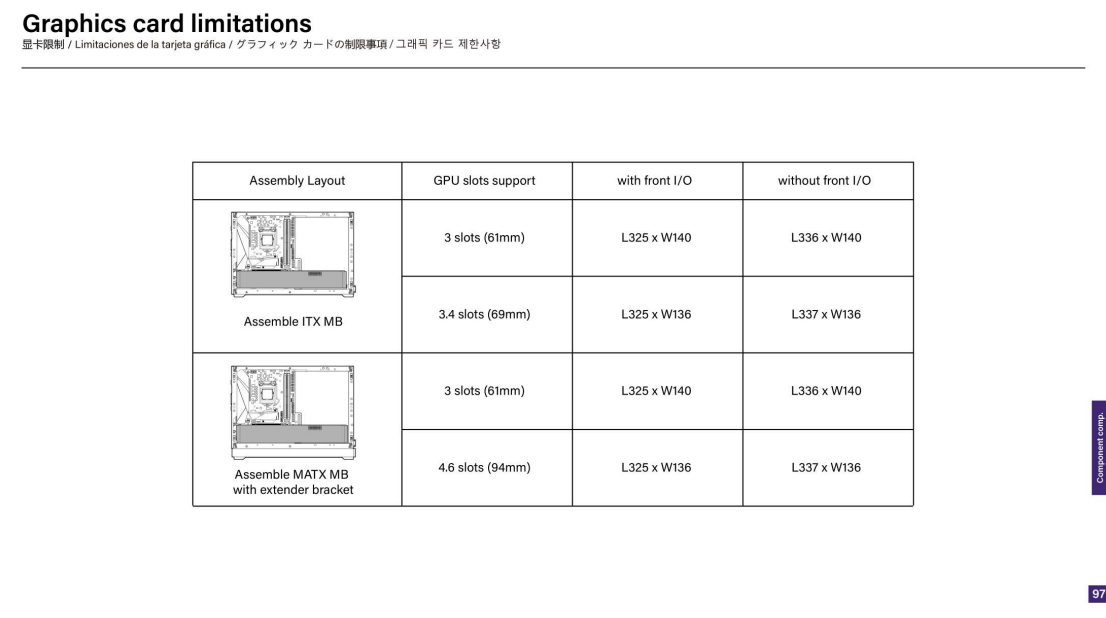

Meshroom D User Guide - Compatibility Section - Page 97

•  Micro-ATX Motherboard Compatibility: Only Support with Extender Bracket

Build Considerations:

Ensure the motherboard’s PCIe slot alignment does not conflict with the GPU’s mounting position.

Cable management space may be limited;

Additional Resources

• Meshroom D User Guide: Download PDF
• Extender Bracket User Guide: Download PDF
