Meshroom D User Guide Page 13-32: Download PDF
- GPU Compatibility

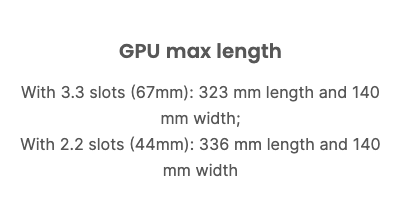

- 5090 (reference design) is supported, but GPU length limits vary based on motherboard and AIO configuration.

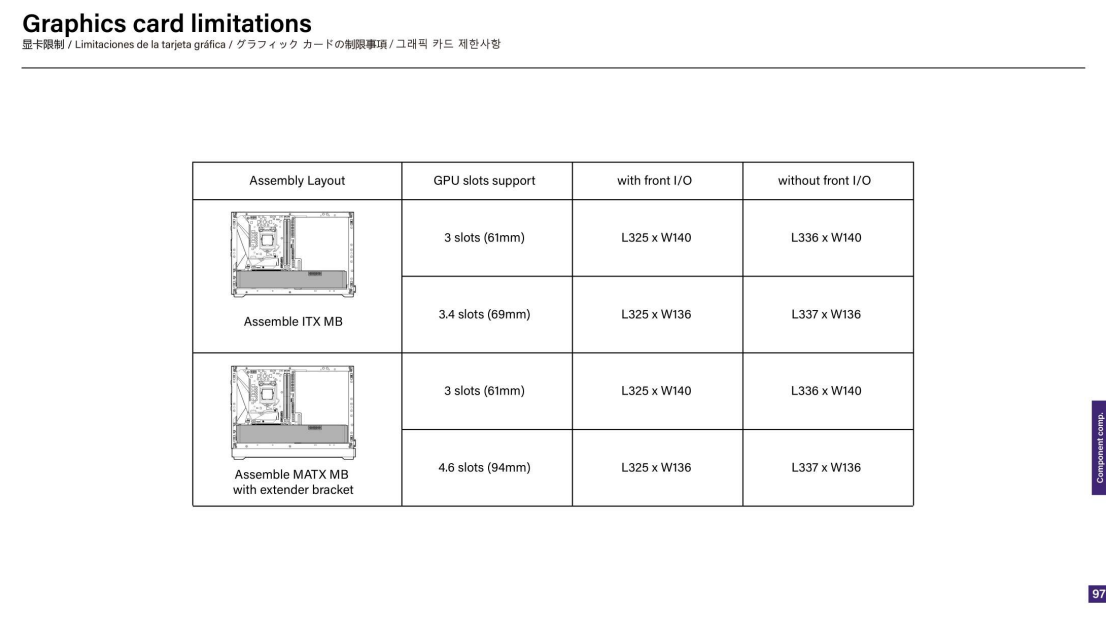

- Critical Reference: See the Meshroom D User Guide for detailed GPU length restrictions when paired with an AIO (Page 42-51)
Reference Builds & Tutorials
For visual guidance, review these resources:
Video Tutorial:
4K Build Showcase: RTX 5090 + Intel i7-14700K in Meshroom D

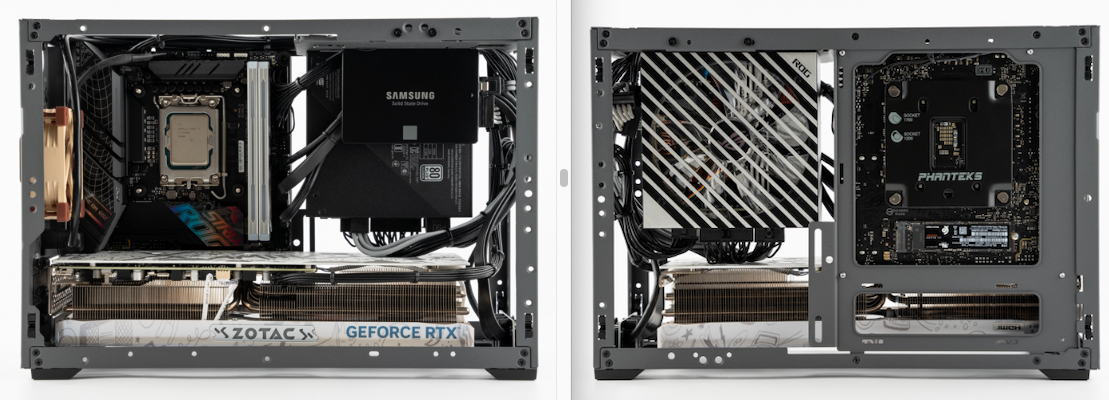

Community Build Example:
Chiphell Forum Build Log （In Chinese L an）
Component | Model/Details |
|---|---|
CPU | Intel Core i7-14700K |
Motherboard | ASUS ROG STRIX B760-I GAMING WIFI (Micro-ATX) |
RAM | ZADAK SPARK RGB DDR5 6000 16GB ×2 (32GB Total) |
GPU | ZOTAC GeForce RTX 4070 Ti X-GAMING OC Opal White (12GB GDDR6X) |
SSD | GALAX HOF Pro 30 2TB PCIe 4.0 NVMe M.2 |
CPU Cooler | Phanteks Glacier One M25 ARGB Black 240mm AIO Liquid Cooler |
Case Fans | - Noctua NF-A12x25 PWM (120mm ×2) - Noctua NF-A8 PWM (80mm ×1) |
Power Supply | |
ASUS ROG LOKI 1000W SFX-L Platinum (Fully Modular) | |
Case | SSUPD Meshroom D (Gray) |
