Meshroom D Water Cooling Compatibility Specifications

Modified on Tue, Aug 26 at 6:15 PM

Meshroom D: Hardware Compatibility with Liquid Cooling (ITX Motherboard)

Motherboard: ITX
Liquid Cooling: 240/280mm
Power Supply: ATX/SFX
GPU Limitations: Length 325mm; Width 136mm; Thickness 66mm

Meshroom D + Expansion Bracket: Hardware Compatibility with Liquid Cooling (M-ATX Motherboard)

Motherboard: M-ATX
Liquid Cooling: 240mm
Power Supply: SFX/SFX-L
GPU Limitations: Length 325mm; Width 136mm; Thickness 94mm

Detailed Explanation of Liquid Cooling Mounting Positions in Meshroom D

I. Meshroom D (Chassis only, without expansion bracket):

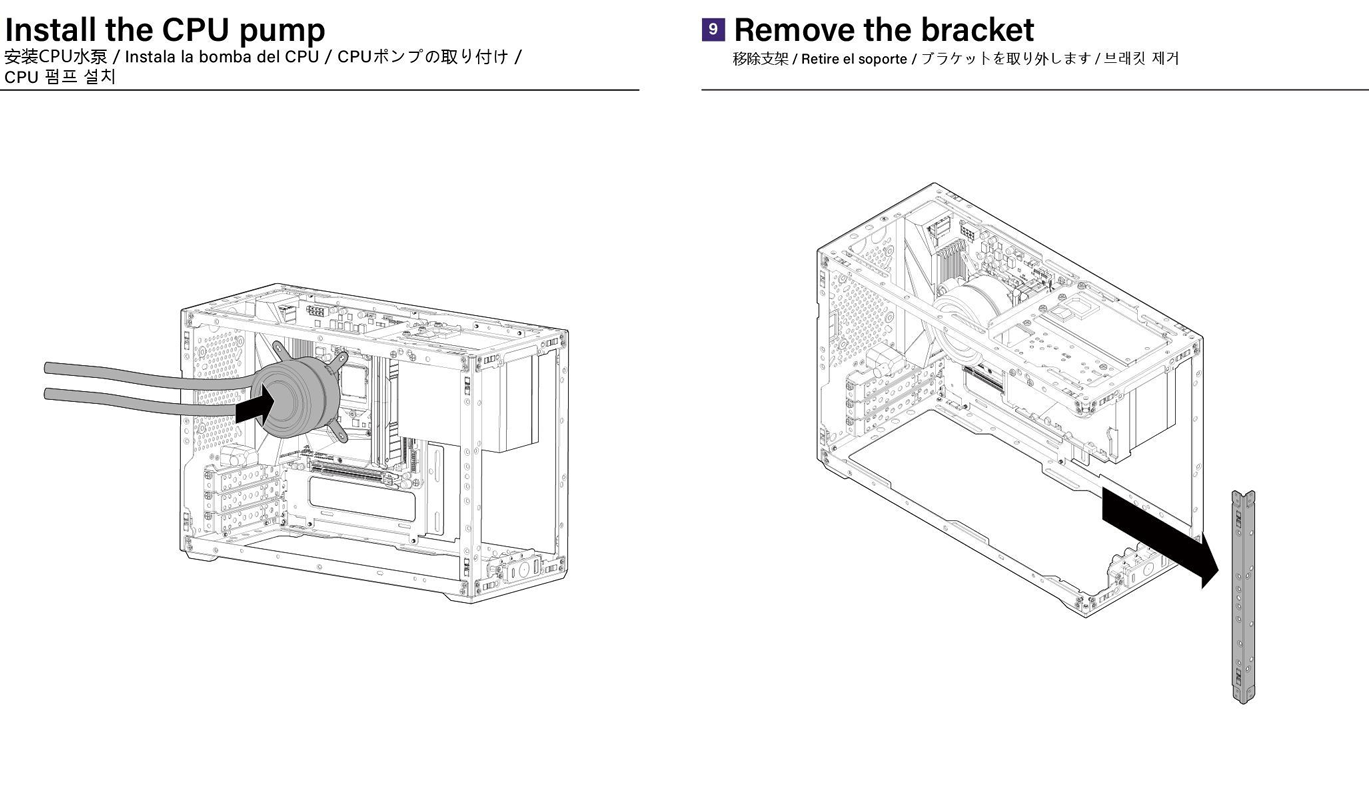

Install the liquid cooling CPU block and remove the side support pillars.

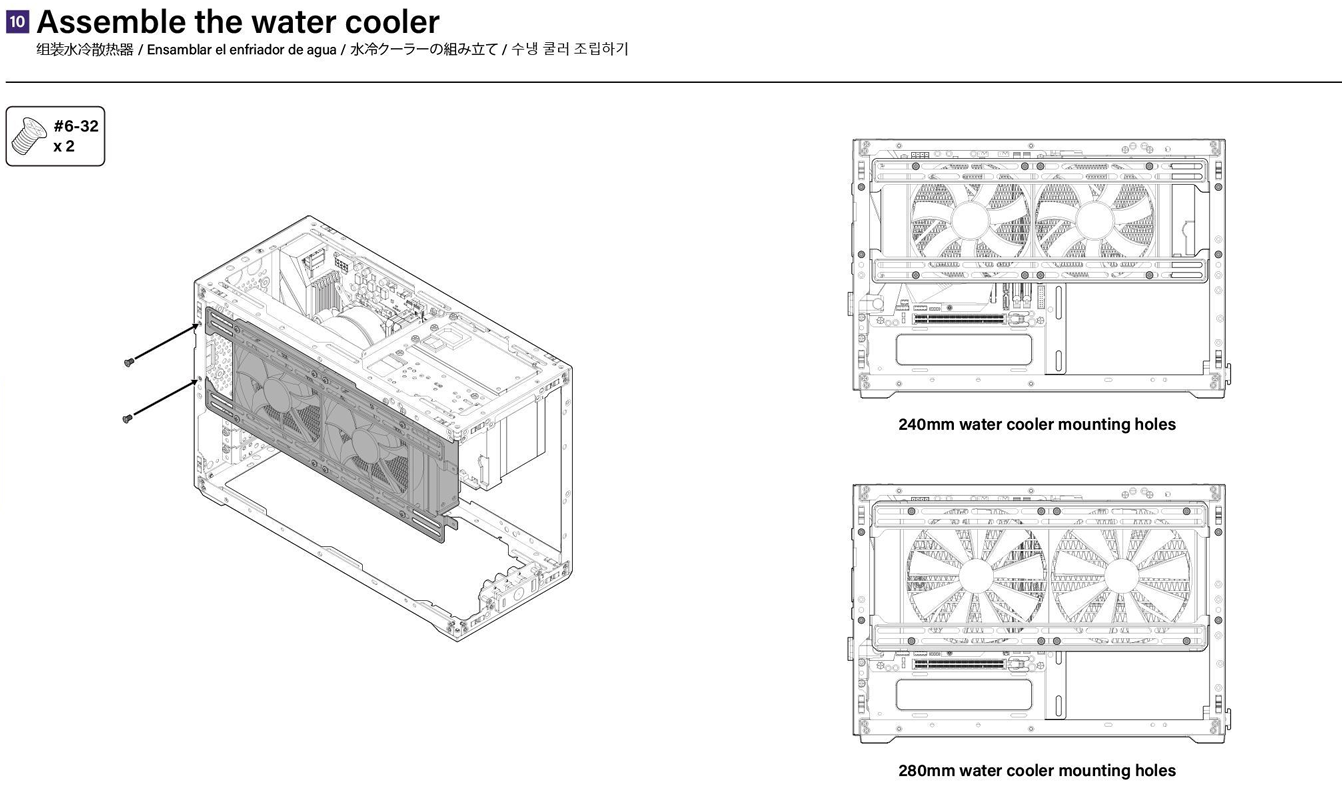

Secure the radiator according to the hole positions shown in the diagram below.

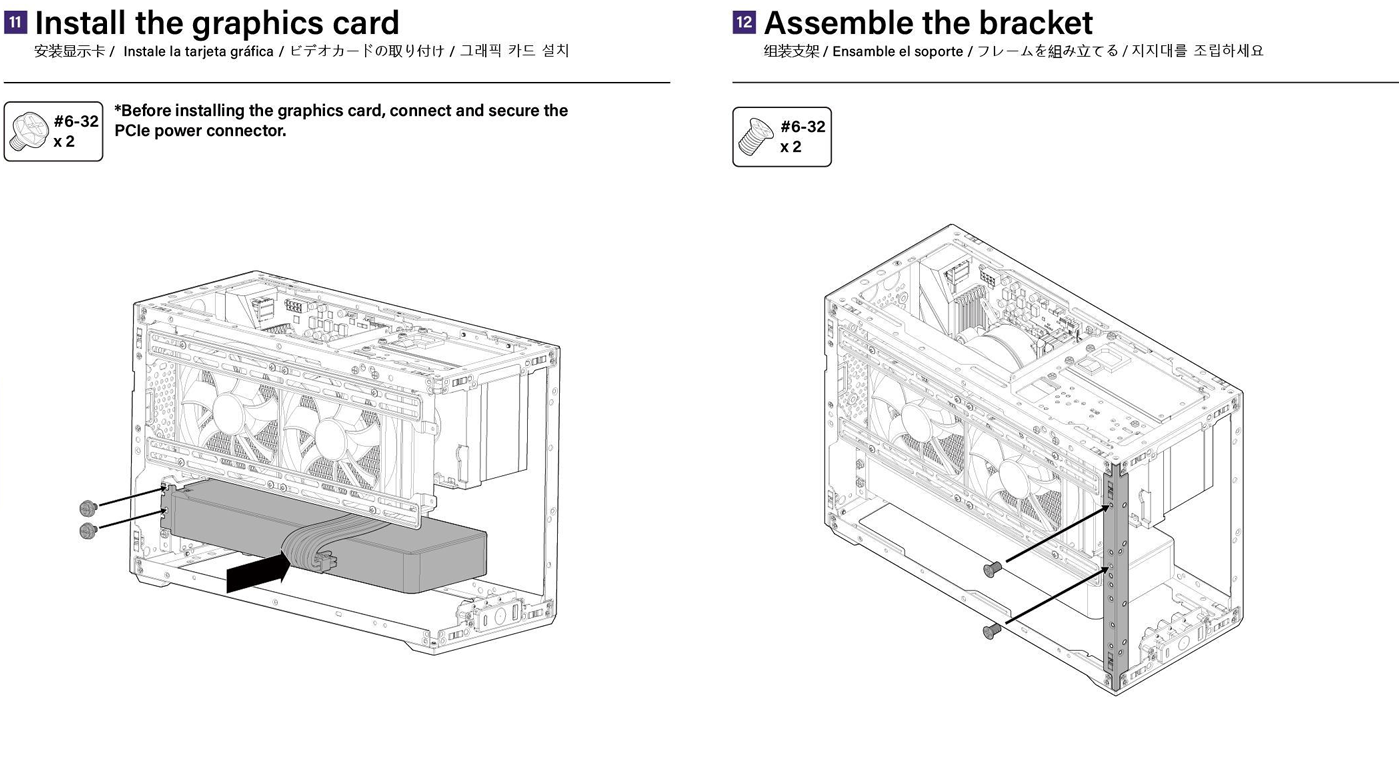

Install the graphics card and fix the side bracket.

II. Meshroom D + Expansion Bracket:

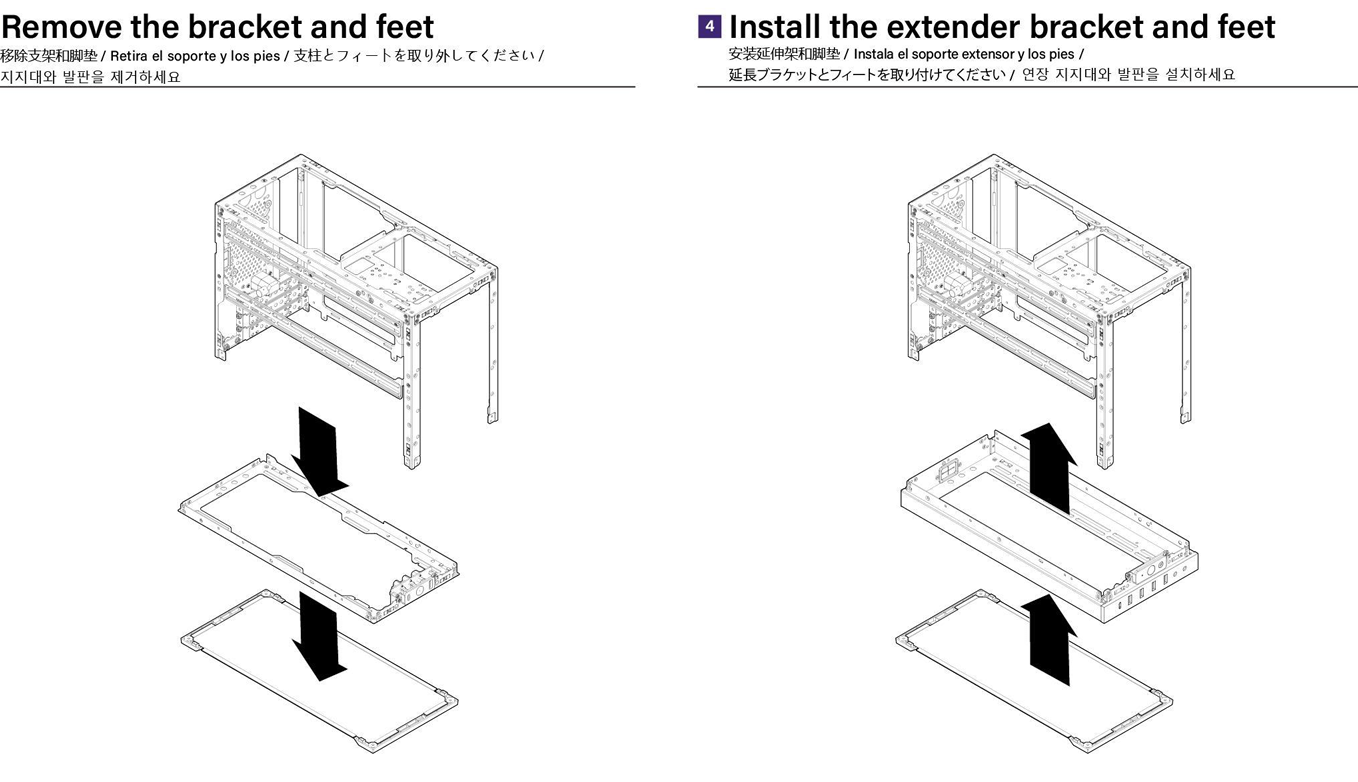

The liquid cooling installation method can follow the previous instructions. Note that the bottom expansion bracket must be replaced in advance to support the M-ATX motherboard.

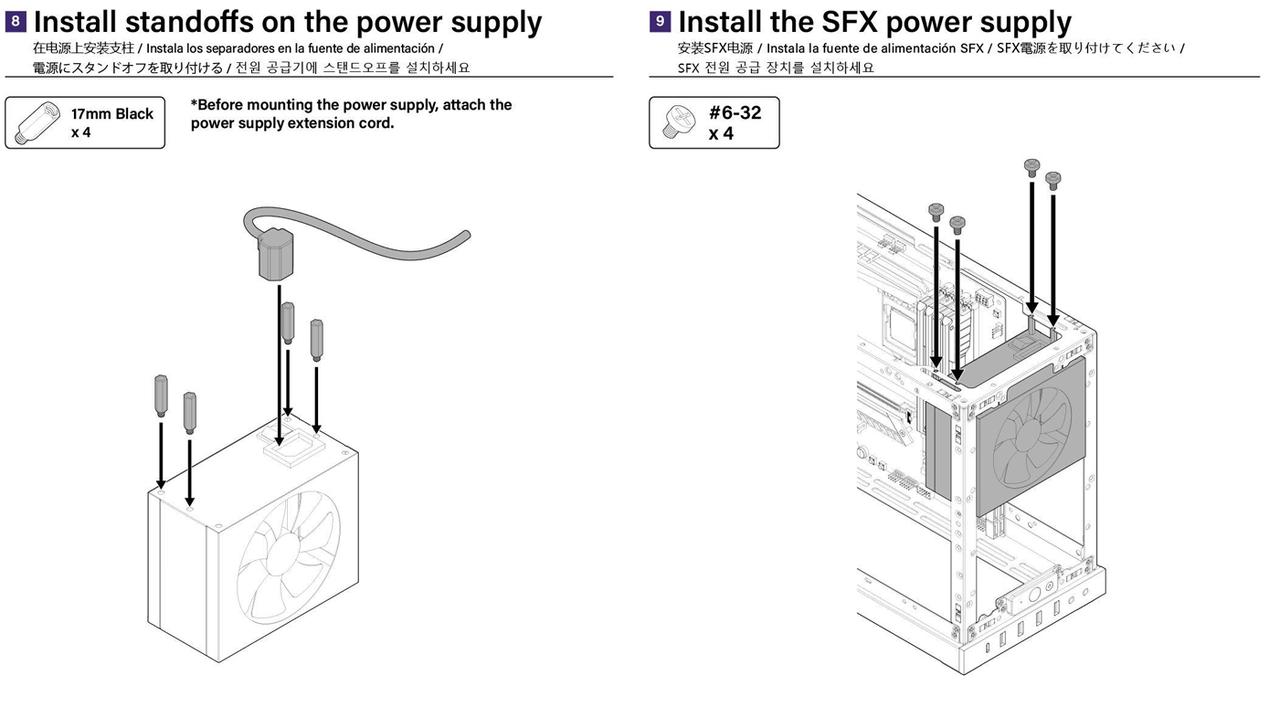

SFX power supplies must be secured using standoffs.

Meshroom D Liquid Cooling Configuration Recommendations:

With a 280mm radiator:

Compatible with flagship and high-end CPUs such as the R9-9900X, R9-9950X, i7-14700K, and U9-285K. Combined with support for graphics cards up to 325mm in length, this configuration enables building an ultra-compact high-end flagship system with exceptional performance.

With a 240mm radiator:

Recommended for mainstream CPUs like the R7-9800X3D, R7-9700X, i5-14600K, and U7-265K. This setup is ideal for crafting a cost-effective gaming PC without compromising on performance.
