Meshroom S / D Build Guide for mATX Motherboard + 4 × 3.5" HDD + SFX PSU

• Meshroom D natively supports only ITX motherboards.
• To install an mATX motherboard, the Expansion Bracket is required.

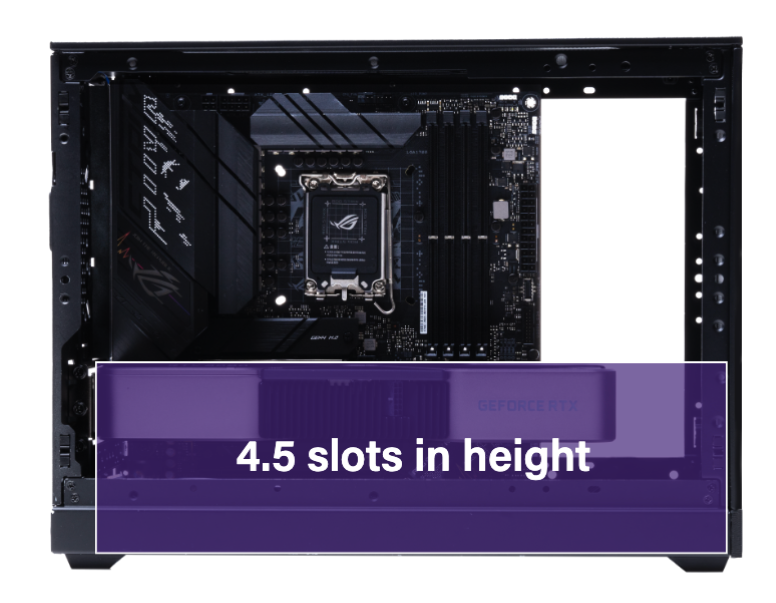

• This layout reduces GPU clearance — please refer to this guide link

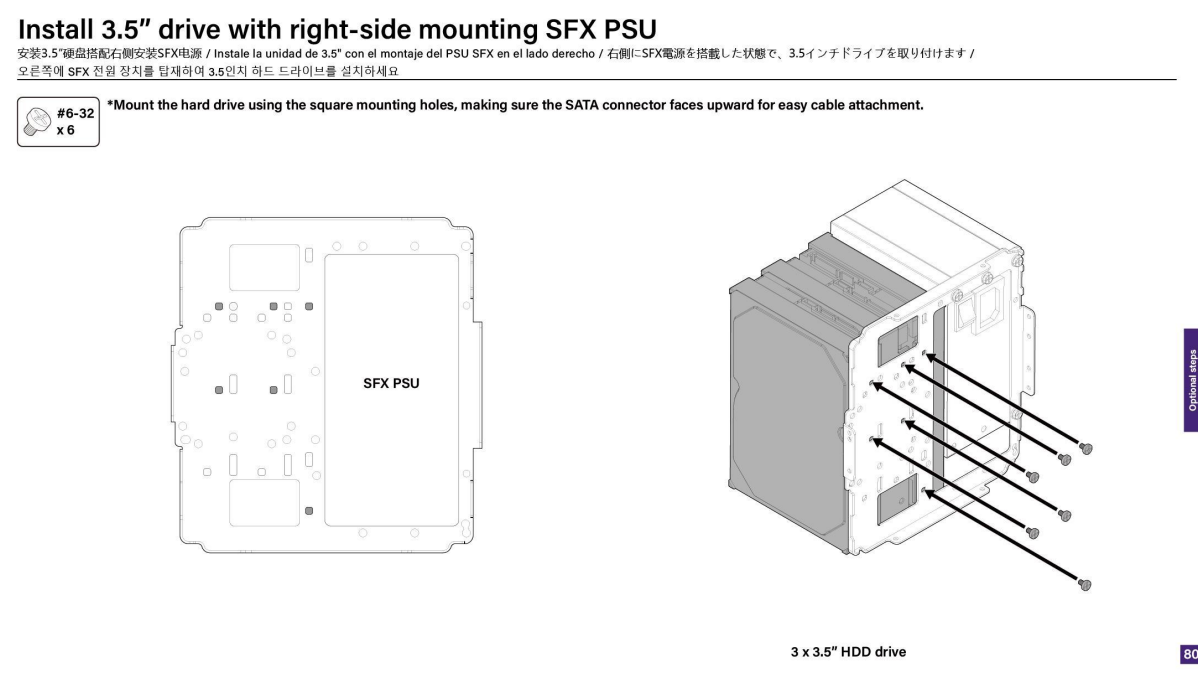

• The SFX PSU mounting area can accommodate up to 3 × 3.5" HDDs, but careful SATA and power cable management is essential.
• AIO liquid coolers cannot be used in this configuration — you must opt for an air cooler.

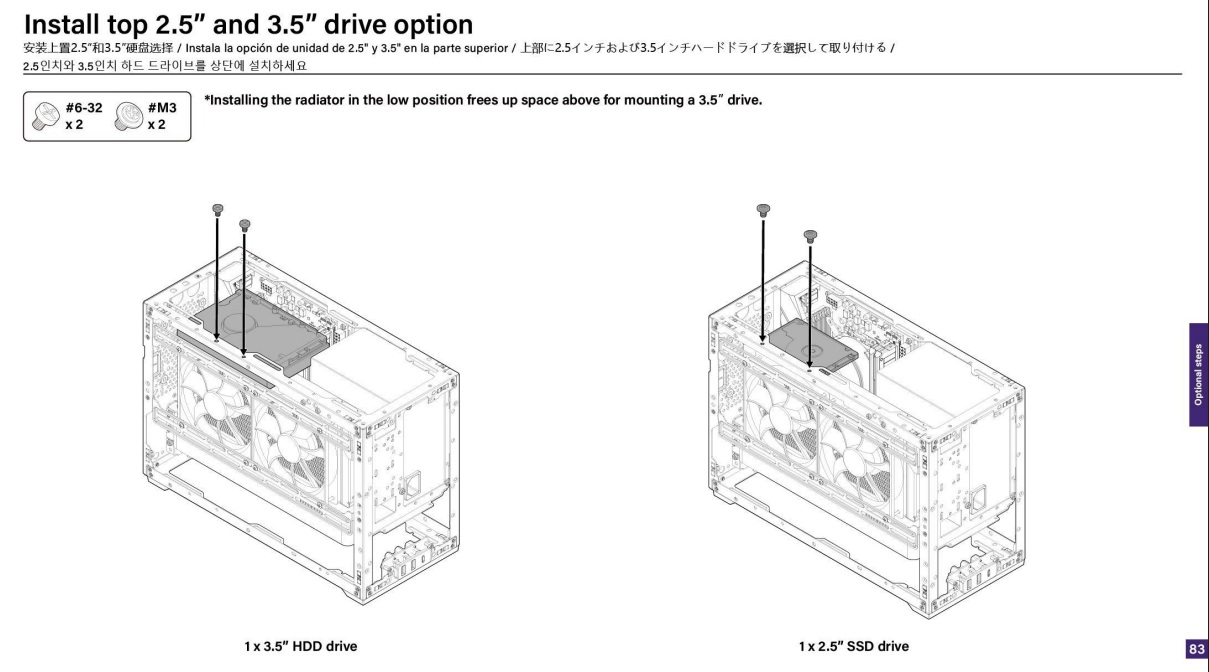

• A 4th HDD can be mounted at the top of the case.

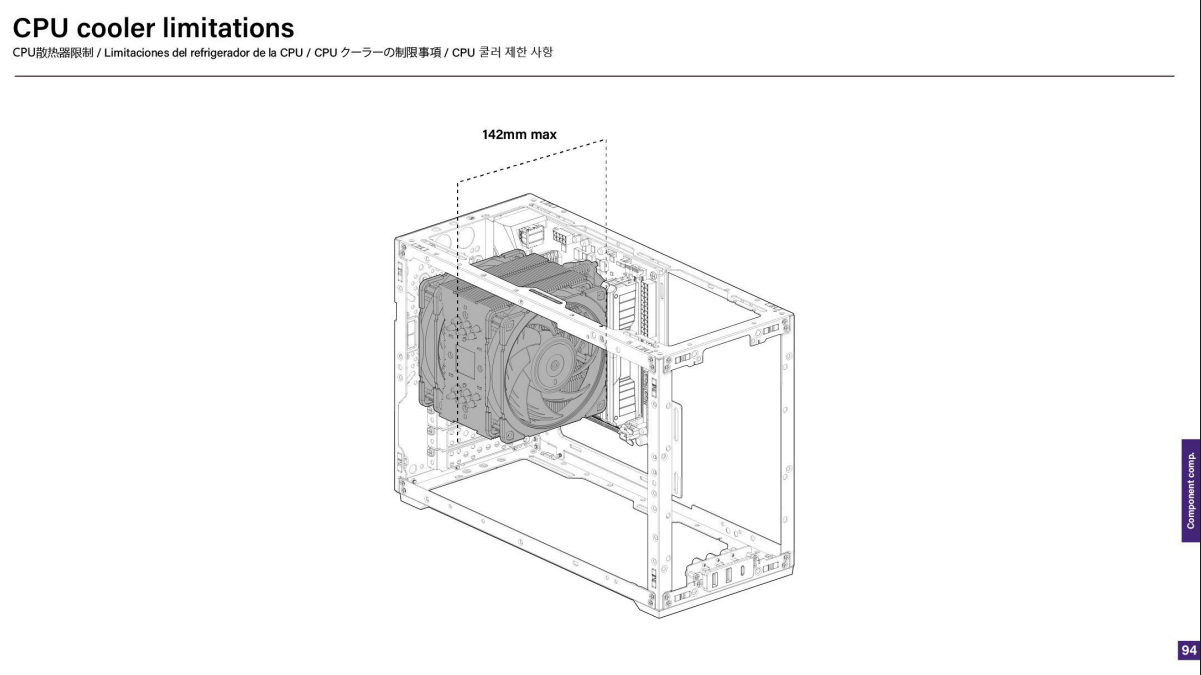

• However, this location may conflict with CPU air cooler space

Meshroom S V2 with mATX + 4 × HDD

Motherboard & GPU Requirements

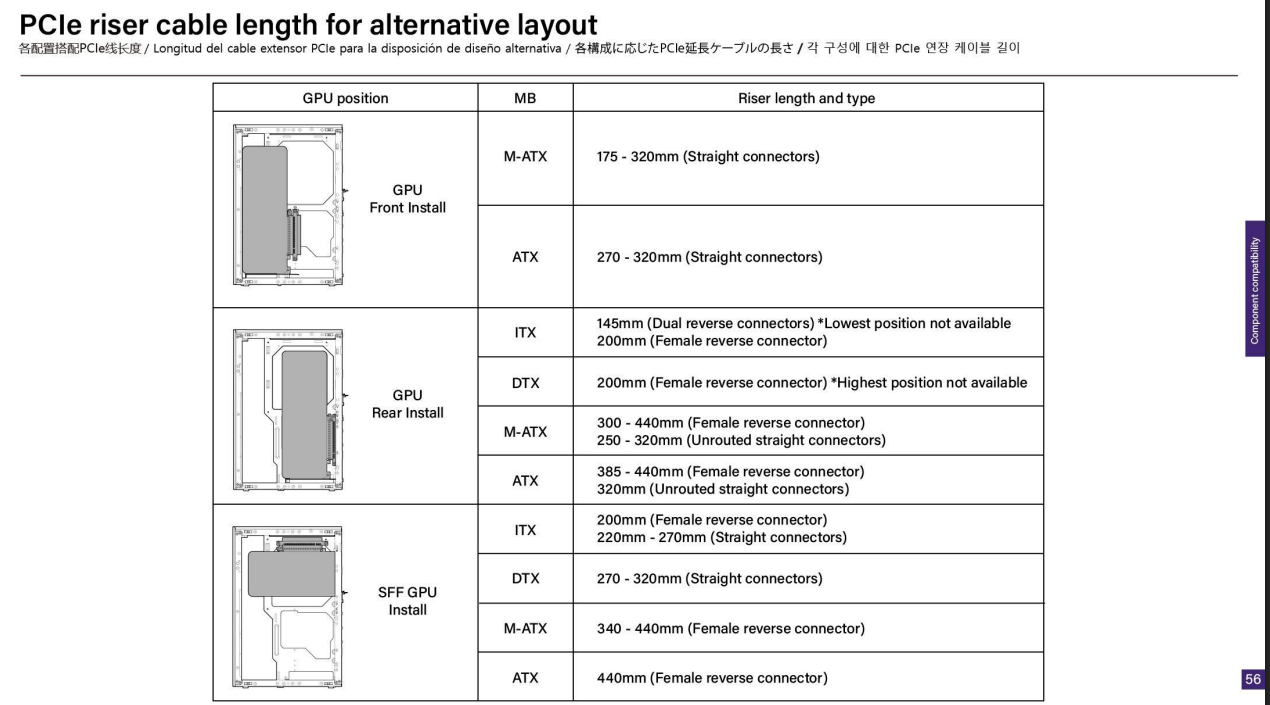

• Meshroom S V2 supports mATX motherboard installation with the 440 mm PCIe riser cable (please select the Meshroom S V2 No Riser Cable Case).

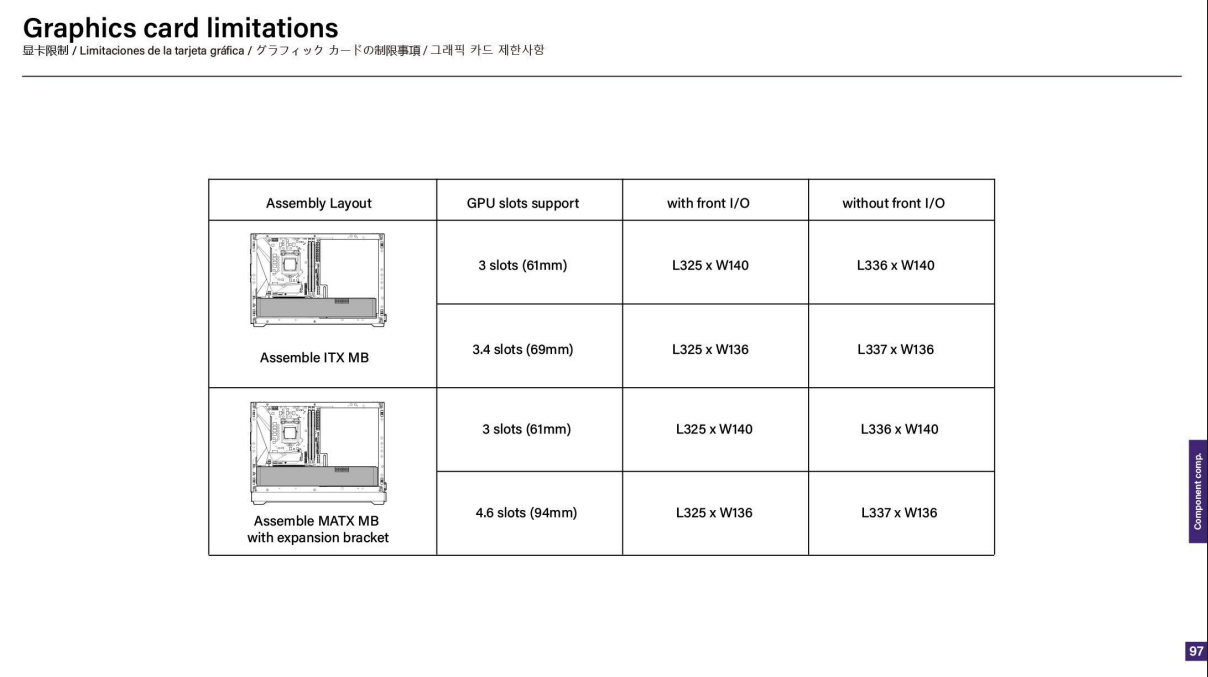

• This configuration only supports SFF GPUs, GPU limitation.

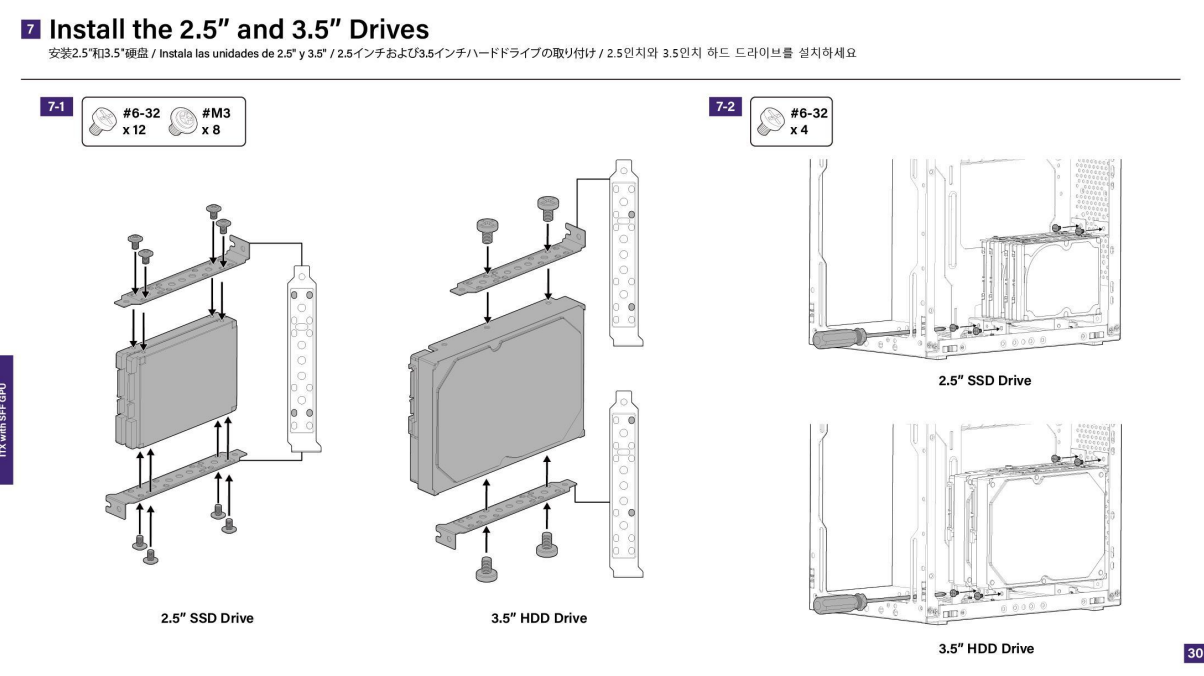

HDD Mounting Positions

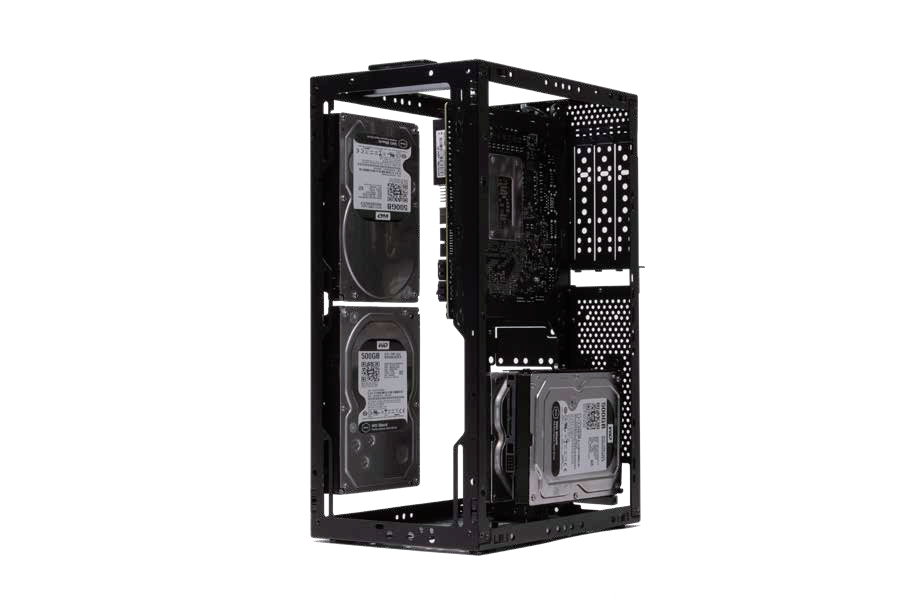

• Position 1: Behind motherboard / under GPU
  • Supports 2 × 3.5" HDDs.
  • Watch for interference with power supply or GPU power connectors.

HDD Mounting Positions

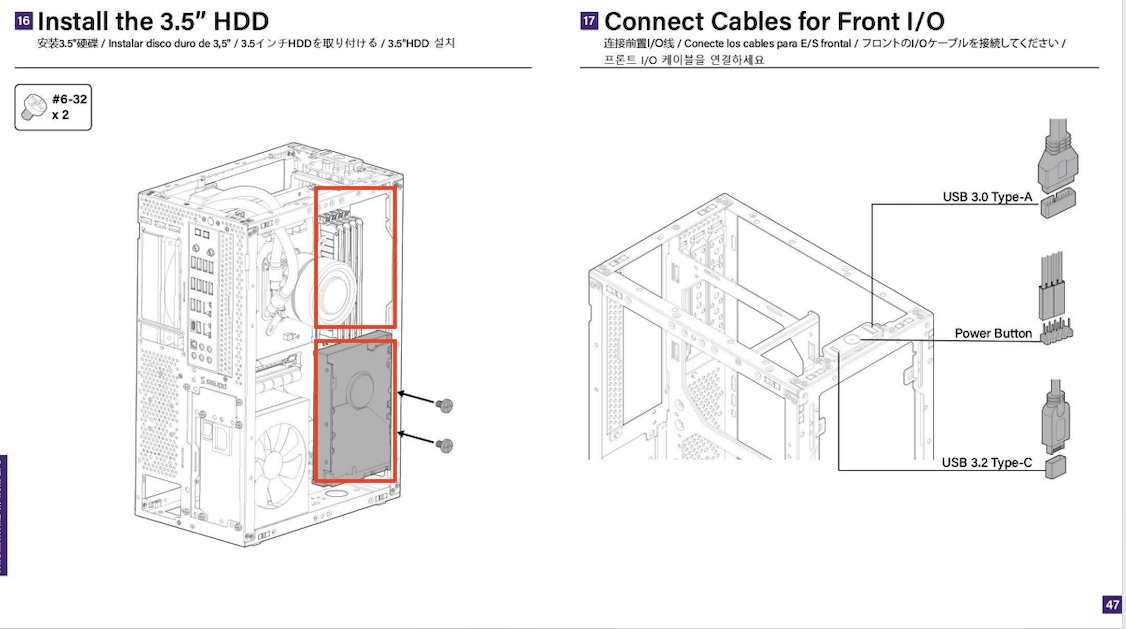

• Position 2: In front of motherboard tray
  • Can fit 2 more HDDs, but:
    • May block CPU cooler space;
    • Will interfere with RAM slots, depending on cooler layout.
